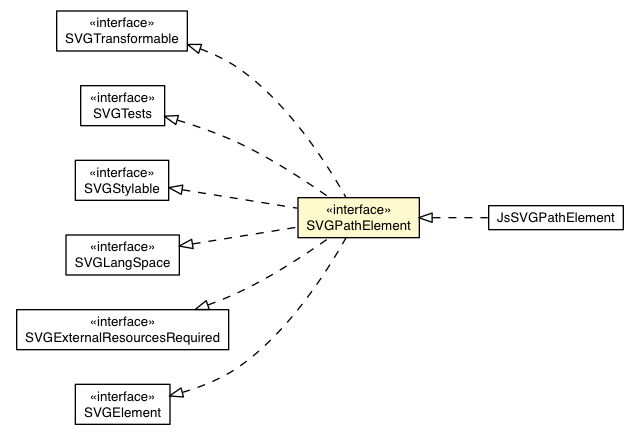

Interface SVGPathElement

All Superinterfaces:

Element, ElementTraversal, EventTarget, Node, NodeSelector, SVGElement, SVGExternalResourcesRequired, SVGLangSpace, SVGLocatable, SVGStylable, SVGTests, SVGTransformable

All Known Implementing Classes:

JsSVGPathElement

public interface SVGPathElement
extends SVGElement, SVGTests, SVGLangSpace, SVGExternalResourcesRequired, SVGStylable, SVGTransformable

The SVGPathElement interface corresponds to the <path> element.

Field Summary

Fields inherited from interface elemental.dom.Element

ALLOW_KEYBOARD_INPUT

Fields inherited from interface elemental.dom.Node

ATTRIBUTE_NODE, CDATA_SECTION_NODE, COMMENT_NODE, DOCUMENT_FRAGMENT_NODE, DOCUMENT_NODE, DOCUMENT_POSITION_CONTAINED_BY, DOCUMENT_POSITION_CONTAINS, DOCUMENT_POSITION_DISCONNECTED, DOCUMENT_POSITION_FOLLOWING, DOCUMENT_POSITION_IMPLEMENTATION_SPECIFIC, DOCUMENT_POSITION_PRECEDING, DOCUMENT_TYPE_NODE, ELEMENT_NODE, ENTITY_NODE, ENTITY_REFERENCE_NODE, NOTATION_NODE, PROCESSING_INSTRUCTION_NODE, TEXT_NODE

Method Summary

Methods

Modifier and Type	Method and Description
SVGPathSegArcAbs	createSVGPathSegArcAbs(float x, float y, float r1, float r2, float angle, boolean largeArcFlag, boolean sweepFlag) Returns a stand-alone, parentless SVGPathSegArcAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float r1 The x-axis radius for the ellipse. float r2 The y-axis radius for the ellipse. float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system. boolean largeArcFlag The value of the large-arc-flag parameter. boolean sweepFlag The value of the large-arc-flag parameter.
SVGPathSegArcRel	createSVGPathSegArcRel(float x, float y, float r1, float r2, float angle, boolean largeArcFlag, boolean sweepFlag) Returns a stand-alone, parentless SVGPathSegArcRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float r1 The x-axis radius for the ellipse. float r2 The y-axis radius for the ellipse. float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system. boolean largeArcFlag The value of the large-arc-flag parameter. boolean sweepFlag The value of the large-arc-flag parameter.
SVGPathSegClosePath	createSVGPathSegClosePath() Returns a stand-alone, parentless SVGPathSegClosePath object.
SVGPathSegCurvetoCubicAbs	createSVGPathSegCurvetoCubicAbs(float x, float y, float x1, float y1, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x1 The absolute X coordinate for the first control point. float y1 The absolute Y coordinate for the first control point. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
SVGPathSegCurvetoCubicRel	createSVGPathSegCurvetoCubicRel(float x, float y, float x1, float y1, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float x1 The relative X coordinate for the first control point. float y1 The relative Y coordinate for the first control point. float x2 The relative X coordinate for the second control point. float y2 The relative Y coordinate for the second control point.
SVGPathSegCurvetoCubicSmoothAbs	createSVGPathSegCurvetoCubicSmoothAbs(float x, float y, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object. Parameters float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
SVGPathSegCurvetoCubicSmoothRel	createSVGPathSegCurvetoCubicSmoothRel(float x, float y, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object. Parameters float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
SVGPathSegCurvetoQuadraticAbs	createSVGPathSegCurvetoQuadraticAbs(float x, float y, float x1, float y1) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x1 The absolute X coordinate for the first control point. float y1 The absolute Y coordinate for the first control point.
SVGPathSegCurvetoQuadraticRel	createSVGPathSegCurvetoQuadraticRel(float x, float y, float x1, float y1) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float x1 The relative X coordinate for the first control point. float y1 The relative Y coordinate for the first control point.
SVGPathSegCurvetoQuadraticSmoothAbs	createSVGPathSegCurvetoQuadraticSmoothAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
SVGPathSegCurvetoQuadraticSmoothRel	createSVGPathSegCurvetoQuadraticSmoothRel(float x, float y) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
SVGPathSegLinetoAbs	createSVGPathSegLinetoAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegLinetoAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
SVGPathSegLinetoHorizontalAbs	createSVGPathSegLinetoHorizontalAbs(float x) Returns a stand-alone, parentless SVGPathSegLinetoHorizontalAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment.
SVGPathSegLinetoHorizontalRel	createSVGPathSegLinetoHorizontalRel(float x) Returns a stand-alone, parentless SVGPathSegLinetoHorizontalRel object. Parameters: float x The relative X coordinate for the end point of this path segment.
SVGPathSegLinetoRel	createSVGPathSegLinetoRel(float x, float y) Returns a stand-alone, parentless SVGPathSegLinetoRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment.
SVGPathSegLinetoVerticalAbs	createSVGPathSegLinetoVerticalAbs(float y) Returns a stand-alone, parentless SVGPathSegLinetoVerticalAbs object. Parameters: float y The absolute Y coordinate for the end point of this path segment.
SVGPathSegLinetoVerticalRel	createSVGPathSegLinetoVerticalRel(float y) Returns a stand-alone, parentless SVGPathSegLinetoVerticalRel object. Parameters: float y The relative Y coordinate for the end point of this path segment.
SVGPathSegMovetoAbs	createSVGPathSegMovetoAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegMovetoAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
SVGPathSegMovetoRel	createSVGPathSegMovetoRel(float x, float y) Returns a stand-alone, parentless SVGPathSegMovetoRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment.
SVGPathSegList	getAnimatedNormalizedPathSegList()
SVGPathSegList	getAnimatedPathSegList()
SVGPathSegList	getNormalizedPathSegList()
SVGAnimatedNumber	getPathLength() Corresponds to attribute pathLength on the given <path> element.
int	getPathSegAtLength(float distance) Returns the index into pathSegList which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.
SVGPathSegList	getPathSegList()
SVGPoint	getPointAtLength(float distance) Returns the (x,y) coordinate in user space which is distance units along the path, utilizing the browser's distance-along-a-path algorithm.
float	getTotalLength() Returns the computed value for the total length of the path using the browser's distance-along-a-path algorithm, as a distance in the current user coordinate system.

Methods inherited from interface elemental.svg.SVGElement

getId, getOwnerSVGElement, getViewportElement, getXmlbase, setId, setXmlbase

Methods inherited from interface elemental.dom.Element

blur, click, focus, getAccessKey, getAttribute, getAttributeNode, getAttributeNodeNS, getAttributeNS, getBoundingClientRect, getChildElementCount, getChildren, getClassList, getClassName, getClientHeight, getClientLeft, getClientRects, getClientTop, getClientWidth, getContentEditable, getDataset, getDir, getElementsByClassName, getElementsByTagName, getElementsByTagNameNS, getFirstElementChild, getInnerHTML, getInnerText, getLang, getLastElementChild, getNextElementSibling, getOffsetHeight, getOffsetLeft, getOffsetParent, getOffsetTop, getOffsetWidth, getOnabort, getOnbeforecopy, getOnbeforecut, getOnbeforepaste, getOnblur, getOnchange, getOnclick, getOncontextmenu, getOncopy, getOncut, getOndblclick, getOndrag, getOndragend, getOndragenter, getOndragleave, getOndragover, getOndragstart, getOndrop, getOnerror, getOnfocus, getOninput, getOninvalid, getOnkeydown, getOnkeypress, getOnkeyup, getOnload, getOnmousedown, getOnmousemove, getOnmouseout, getOnmouseover, getOnmouseup, getOnmousewheel, getOnpaste, getOnreset, getOnscroll, getOnsearch, getOnselect, getOnselectstart, getOnsubmit, getOntouchcancel, getOntouchend, getOntouchmove, getOntouchstart, getOnwebkitfullscreenchange, getOnwebkitfullscreenerror, getOuterHTML, getOuterText, getPreviousElementSibling, getScrollHeight, getScrollLeft, getScrollTop, getScrollWidth, getStyle, getTabIndex, getTagName, getTitle, getWebkitdropzone, getWebkitRegionOverflow, hasAttribute, hasAttributeNS, insertAdjacentElement, insertAdjacentHTML, insertAdjacentText, isContentEditable, isDraggable, isHidden, isSpellcheck, isTranslate, querySelector, querySelectorAll, removeAttribute, removeAttributeNode, removeAttributeNS, scrollByLines, scrollByPages, scrollIntoView, scrollIntoView, scrollIntoViewIfNeeded, scrollIntoViewIfNeeded, setAccessKey, setAttribute, setAttributeNode, setAttributeNodeNS, setAttributeNS, setClassName, setContentEditable, setDir, setDraggable, setHidden, setInnerHTML, setInnerText, setLang, setOnabort, setOnbeforecopy, setOnbeforecut, setOnbeforepaste, setOnblur, setOnchange, setOnclick, setOncontextmenu, setOncopy, setOncut, setOndblclick, setOndrag, setOndragend, setOndragenter, setOndragleave, setOndragover, setOndragstart, setOndrop, setOnerror, setOnfocus, setOninput, setOninvalid, setOnkeydown, setOnkeypress, setOnkeyup, setOnload, setOnmousedown, setOnmousemove, setOnmouseout, setOnmouseover, setOnmouseup, setOnmousewheel, setOnpaste, setOnreset, setOnscroll, setOnsearch, setOnselect, setOnselectstart, setOnsubmit, setOntouchcancel, setOntouchend, setOntouchmove, setOntouchstart, setOnwebkitfullscreenchange, setOnwebkitfullscreenerror, setOuterHTML, setOuterText, setScrollLeft, setScrollTop, setSpellcheck, setTabIndex, setTitle, setTranslate, setWebkitdropzone, webkitMatchesSelector, webkitRequestFullscreen, webkitRequestFullScreen

Methods inherited from interface elemental.dom.Node

addEventListener, addEventListener, appendChild, cloneNode, compareDocumentPosition, contains, dispatchEvent, getAttributes, getBaseURI, getChildNodes, getFirstChild, getLastChild, getLocalName, getNamespaceURI, getNextSibling, getNodeName, getNodeType, getNodeValue, getOwnerDocument, getParentElement, getParentNode, getPrefix, getPreviousSibling, getTextContent, hasAttributes, hasChildNodes, insertBefore, isDefaultNamespace, isEqualNode, isSameNode, isSupported, lookupNamespaceURI, lookupPrefix, normalize, removeChild, removeEventListener, removeEventListener, replaceChild, setNodeValue, setPrefix, setTextContent

Methods inherited from interface elemental.svg.SVGTests

getRequiredExtensions, getRequiredFeatures, getSystemLanguage, hasExtension

Methods inherited from interface elemental.svg.SVGLangSpace

getXmllang, getXmlspace, setXmllang, setXmlspace

Methods inherited from interface elemental.svg.SVGExternalResourcesRequired

getExternalResourcesRequired

Methods inherited from interface elemental.svg.SVGStylable

getAnimatedClassName, getPresentationAttribute, getSvgStyle

Methods inherited from interface elemental.svg.SVGTransformable

getAnimatedTransform

Methods inherited from interface elemental.svg.SVGLocatable

getBBox, getCTM, getFarthestViewportElement, getNearestViewportElement, getScreenCTM, getTransformToElement

Method Detail

getAnimatedNormalizedPathSegList

SVGPathSegList getAnimatedNormalizedPathSegList()

getAnimatedPathSegList

SVGPathSegList getAnimatedPathSegList()

getNormalizedPathSegList

SVGPathSegList getNormalizedPathSegList()

getPathLength

SVGAnimatedNumber getPathLength()

Corresponds to attribute pathLength on the given <path> element.

getPathSegList

SVGPathSegList getPathSegList()

createSVGPathSegArcAbs

SVGPathSegArcAbs createSVGPathSegArcAbs(float x,
                                      float y,
                                      float r1,
                                      float r2,
                                      float angle,
                                      boolean largeArcFlag,
                                      boolean sweepFlag)

Returns a stand-alone, parentless SVGPathSegArcAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float r1
  The x-axis radius for the ellipse.
• float r2
  The y-axis radius for the ellipse.
• float angle
  The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
• boolean largeArcFlag
  The value of the large-arc-flag parameter.
• boolean sweepFlag
  The value of the large-arc-flag parameter.

createSVGPathSegArcRel

SVGPathSegArcRel createSVGPathSegArcRel(float x,
                                      float y,
                                      float r1,
                                      float r2,
                                      float angle,
                                      boolean largeArcFlag,
                                      boolean sweepFlag)

Returns a stand-alone, parentless SVGPathSegArcRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float r1
  The x-axis radius for the ellipse.
• float r2
  The y-axis radius for the ellipse.
• float angle
  The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
• boolean largeArcFlag
  The value of the large-arc-flag parameter.
• boolean sweepFlag
  The value of the large-arc-flag parameter.

createSVGPathSegClosePath

SVGPathSegClosePath createSVGPathSegClosePath()

Returns a stand-alone, parentless SVGPathSegClosePath object.

createSVGPathSegCurvetoCubicAbs

SVGPathSegCurvetoCubicAbs createSVGPathSegCurvetoCubicAbs(float x,
                                                        float y,
                                                        float x1,
                                                        float y1,
                                                        float x2,
                                                        float y2)

Returns a stand-alone, parentless SVGPathSegCurvetoCubicAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x1
  The absolute X coordinate for the first control point.
• float y1
  The absolute Y coordinate for the first control point.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

createSVGPathSegCurvetoCubicRel

SVGPathSegCurvetoCubicRel createSVGPathSegCurvetoCubicRel(float x,
                                                        float y,
                                                        float x1,
                                                        float y1,
                                                        float x2,
                                                        float y2)

Returns a stand-alone, parentless SVGPathSegCurvetoCubicRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float x1
  The relative X coordinate for the first control point.
• float y1
  The relative Y coordinate for the first control point.
• float x2
  The relative X coordinate for the second control point.
• float y2
  The relative Y coordinate for the second control point.

createSVGPathSegCurvetoCubicSmoothAbs

SVGPathSegCurvetoCubicSmoothAbs createSVGPathSegCurvetoCubicSmoothAbs(float x,
                                                                    float y,
                                                                    float x2,
                                                                    float y2)

Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object.

Parameters

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

createSVGPathSegCurvetoCubicSmoothRel

SVGPathSegCurvetoCubicSmoothRel createSVGPathSegCurvetoCubicSmoothRel(float x,
                                                                    float y,
                                                                    float x2,
                                                                    float y2)

Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object.

Parameters

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

createSVGPathSegCurvetoQuadraticAbs

SVGPathSegCurvetoQuadraticAbs createSVGPathSegCurvetoQuadraticAbs(float x,
                                                                float y,
                                                                float x1,
                                                                float y1)

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x1
  The absolute X coordinate for the first control point.
• float y1
  The absolute Y coordinate for the first control point.

createSVGPathSegCurvetoQuadraticRel

SVGPathSegCurvetoQuadraticRel createSVGPathSegCurvetoQuadraticRel(float x,
                                                                float y,
                                                                float x1,
                                                                float y1)

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float x1
  The relative X coordinate for the first control point.
• float y1
  The relative Y coordinate for the first control point.

createSVGPathSegCurvetoQuadraticSmoothAbs

SVGPathSegCurvetoQuadraticSmoothAbs createSVGPathSegCurvetoQuadraticSmoothAbs(float x,
                                                                            float y)

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

createSVGPathSegCurvetoQuadraticSmoothRel

SVGPathSegCurvetoQuadraticSmoothRel createSVGPathSegCurvetoQuadraticSmoothRel(float x,
                                                                            float y)

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

createSVGPathSegLinetoAbs

SVGPathSegLinetoAbs createSVGPathSegLinetoAbs(float x,
                                            float y)

Returns a stand-alone, parentless SVGPathSegLinetoAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

createSVGPathSegLinetoHorizontalAbs

SVGPathSegLinetoHorizontalAbs createSVGPathSegLinetoHorizontalAbs(float x)

Returns a stand-alone, parentless SVGPathSegLinetoHorizontalAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.

createSVGPathSegLinetoHorizontalRel

SVGPathSegLinetoHorizontalRel createSVGPathSegLinetoHorizontalRel(float x)

Returns a stand-alone, parentless SVGPathSegLinetoHorizontalRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.

createSVGPathSegLinetoRel

SVGPathSegLinetoRel createSVGPathSegLinetoRel(float x,
                                            float y)

Returns a stand-alone, parentless SVGPathSegLinetoRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.

createSVGPathSegLinetoVerticalAbs

SVGPathSegLinetoVerticalAbs createSVGPathSegLinetoVerticalAbs(float y)

Returns a stand-alone, parentless SVGPathSegLinetoVerticalAbs object.

Parameters:

• float y
  The absolute Y coordinate for the end point of this path segment.

createSVGPathSegLinetoVerticalRel

SVGPathSegLinetoVerticalRel createSVGPathSegLinetoVerticalRel(float y)

Returns a stand-alone, parentless SVGPathSegLinetoVerticalRel object.

Parameters:

• float y
  The relative Y coordinate for the end point of this path segment.

createSVGPathSegMovetoAbs

SVGPathSegMovetoAbs createSVGPathSegMovetoAbs(float x,
                                            float y)

Returns a stand-alone, parentless SVGPathSegMovetoAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

createSVGPathSegMovetoRel

SVGPathSegMovetoRel createSVGPathSegMovetoRel(float x,
                                            float y)

Returns a stand-alone, parentless SVGPathSegMovetoRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.

getPathSegAtLength

int getPathSegAtLength(float distance)

Returns the index into pathSegList which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.

getPointAtLength

SVGPoint getPointAtLength(float distance)

Returns the (x,y) coordinate in user space which is distance units along the path, utilizing the browser's distance-along-a-path algorithm.

getTotalLength

float getTotalLength()

Returns the computed value for the total length of the path using the browser's distance-along-a-path algorithm, as a distance in the current user coordinate system.
