elemental.js.svg

Class JsSVGPathElement

java.lang.Object

com.google.gwt.core.client.JavaScriptObject

elemental.js.util.JsElementalBase

elemental.js.dom.JsElementalMixinBase

elemental.js.dom.JsNode

elemental.js.dom.JsElement

elemental.js.svg.JsSVGElement

elemental.js.svg.JsSVGPathElement

All Implemented Interfaces:

Element, ElementalMixinBase, ElementTraversal, Node, NodeSelector, EventTarget, ElementTimeControl, SVGElement, SVGExternalResourcesRequired, SVGFilterPrimitiveStandardAttributes, SVGFitToViewBox, SVGLangSpace, SVGLocatable, SVGPathElement, SVGStylable, SVGTests, SVGTransformable, SVGURIReference, SVGZoomAndPan, Indexable, IndexableInt, IndexableNumber, Mappable, Settable, SettableInt, SettableNumber

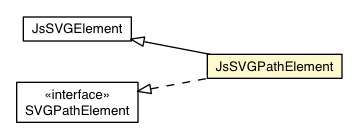

public class JsSVGPathElement
extends JsSVGElement
implements SVGPathElement

Field Summary

Fields inherited from interface elemental.dom.Element

ALLOW_KEYBOARD_INPUT

Fields inherited from interface elemental.dom.Node

ATTRIBUTE_NODE, CDATA_SECTION_NODE, COMMENT_NODE, DOCUMENT_FRAGMENT_NODE, DOCUMENT_NODE, DOCUMENT_POSITION_CONTAINED_BY, DOCUMENT_POSITION_CONTAINS, DOCUMENT_POSITION_DISCONNECTED, DOCUMENT_POSITION_FOLLOWING, DOCUMENT_POSITION_IMPLEMENTATION_SPECIFIC, DOCUMENT_POSITION_PRECEDING, DOCUMENT_TYPE_NODE, ELEMENT_NODE, ENTITY_NODE, ENTITY_REFERENCE_NODE, NOTATION_NODE, PROCESSING_INSTRUCTION_NODE, TEXT_NODE

Fields inherited from interface elemental.svg.SVGZoomAndPan

SVG_ZOOMANDPAN_DISABLE, SVG_ZOOMANDPAN_MAGNIFY, SVG_ZOOMANDPAN_UNKNOWN

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	JsSVGPathElement()

Method Summary

Methods

Modifier and Type	Method and Description
JsSVGPathSegArcAbs	createSVGPathSegArcAbs(float x, float y, float r1, float r2, float angle, boolean largeArcFlag, boolean sweepFlag) Returns a stand-alone, parentless SVGPathSegArcAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float r1 The x-axis radius for the ellipse. float r2 The y-axis radius for the ellipse. float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system. boolean largeArcFlag The value of the large-arc-flag parameter. boolean sweepFlag The value of the large-arc-flag parameter.
JsSVGPathSegArcRel	createSVGPathSegArcRel(float x, float y, float r1, float r2, float angle, boolean largeArcFlag, boolean sweepFlag) Returns a stand-alone, parentless SVGPathSegArcRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float r1 The x-axis radius for the ellipse. float r2 The y-axis radius for the ellipse. float angle The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system. boolean largeArcFlag The value of the large-arc-flag parameter. boolean sweepFlag The value of the large-arc-flag parameter.
JsSVGPathSegClosePath	createSVGPathSegClosePath() Returns a stand-alone, parentless SVGPathSegClosePath object.
JsSVGPathSegCurvetoCubicAbs	createSVGPathSegCurvetoCubicAbs(float x, float y, float x1, float y1, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x1 The absolute X coordinate for the first control point. float y1 The absolute Y coordinate for the first control point. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
JsSVGPathSegCurvetoCubicRel	createSVGPathSegCurvetoCubicRel(float x, float y, float x1, float y1, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float x1 The relative X coordinate for the first control point. float y1 The relative Y coordinate for the first control point. float x2 The relative X coordinate for the second control point. float y2 The relative Y coordinate for the second control point.
JsSVGPathSegCurvetoCubicSmoothAbs	createSVGPathSegCurvetoCubicSmoothAbs(float x, float y, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object. Parameters float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
JsSVGPathSegCurvetoCubicSmoothRel	createSVGPathSegCurvetoCubicSmoothRel(float x, float y, float x2, float y2) Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object. Parameters float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x2 The absolute X coordinate for the second control point. float y2 The absolute Y coordinate for the second control point.
JsSVGPathSegCurvetoQuadraticAbs	createSVGPathSegCurvetoQuadraticAbs(float x, float y, float x1, float y1) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment. float x1 The absolute X coordinate for the first control point. float y1 The absolute Y coordinate for the first control point.
JsSVGPathSegCurvetoQuadraticRel	createSVGPathSegCurvetoQuadraticRel(float x, float y, float x1, float y1) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment. float x1 The relative X coordinate for the first control point. float y1 The relative Y coordinate for the first control point.
JsSVGPathSegCurvetoQuadraticSmoothAbs	createSVGPathSegCurvetoQuadraticSmoothAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
JsSVGPathSegCurvetoQuadraticSmoothRel	createSVGPathSegCurvetoQuadraticSmoothRel(float x, float y) Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
JsSVGPathSegLinetoAbs	createSVGPathSegLinetoAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegLinetoAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
JsSVGPathSegLinetoHorizontalAbs	createSVGPathSegLinetoHorizontalAbs(float x) Returns a stand-alone, parentless SVGPathSegLinetoHorizontalAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment.
JsSVGPathSegLinetoHorizontalRel	createSVGPathSegLinetoHorizontalRel(float x) Returns a stand-alone, parentless SVGPathSegLinetoHorizontalRel object. Parameters: float x The relative X coordinate for the end point of this path segment.
JsSVGPathSegLinetoRel	createSVGPathSegLinetoRel(float x, float y) Returns a stand-alone, parentless SVGPathSegLinetoRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment.
JsSVGPathSegLinetoVerticalAbs	createSVGPathSegLinetoVerticalAbs(float y) Returns a stand-alone, parentless SVGPathSegLinetoVerticalAbs object. Parameters: float y The absolute Y coordinate for the end point of this path segment.
JsSVGPathSegLinetoVerticalRel	createSVGPathSegLinetoVerticalRel(float y) Returns a stand-alone, parentless SVGPathSegLinetoVerticalRel object. Parameters: float y The relative Y coordinate for the end point of this path segment.
JsSVGPathSegMovetoAbs	createSVGPathSegMovetoAbs(float x, float y) Returns a stand-alone, parentless SVGPathSegMovetoAbs object. Parameters: float x The absolute X coordinate for the end point of this path segment. float y The absolute Y coordinate for the end point of this path segment.
JsSVGPathSegMovetoRel	createSVGPathSegMovetoRel(float x, float y) Returns a stand-alone, parentless SVGPathSegMovetoRel object. Parameters: float x The relative X coordinate for the end point of this path segment. float y The relative Y coordinate for the end point of this path segment.
JsSVGPathSegList	getAnimatedNormalizedPathSegList()
JsSVGPathSegList	getAnimatedPathSegList()
JsSVGPathSegList	getNormalizedPathSegList()
JsSVGAnimatedNumber	getPathLength() Corresponds to attribute pathLength on the given <path> element.
int	getPathSegAtLength(float distance) Returns the index into pathSegList which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.
JsSVGPathSegList	getPathSegList()
JsSVGPoint	getPointAtLength(float distance) Returns the (x,y) coordinate in user space which is distance units along the path, utilizing the browser's distance-along-a-path algorithm.
float	getTotalLength() Returns the computed value for the total length of the path using the browser's distance-along-a-path algorithm, as a distance in the current user coordinate system.

Methods inherited from class elemental.js.svg.JsSVGElement

getOwnerSVGElement, getViewportElement, getXmlbase, setXmlbase

Methods inherited from class elemental.js.dom.JsElement

blur, click, focus, getAccessKey, getAttribute, getAttributeNode, getAttributeNodeNS, getAttributeNS, getBoundingClientRect, getChildren, getClassList, getClassName, getClientHeight, getClientLeft, getClientRects, getClientTop, getClientWidth, getContentEditable, getDataset, getDir, getElementsByClassName, getElementsByTagName, getElementsByTagNameNS, getId, getInnerHTML, getInnerText, getLang, getOffsetHeight, getOffsetLeft, getOffsetParent, getOffsetTop, getOffsetWidth, getOnabort, getOnbeforecopy, getOnbeforecut, getOnbeforepaste, getOnblur, getOnchange, getOnclick, getOncontextmenu, getOncopy, getOncut, getOndblclick, getOndrag, getOndragend, getOndragenter, getOndragleave, getOndragover, getOndragstart, getOndrop, getOnerror, getOnfocus, getOninput, getOninvalid, getOnkeydown, getOnkeypress, getOnkeyup, getOnload, getOnmousedown, getOnmousemove, getOnmouseout, getOnmouseover, getOnmouseup, getOnmousewheel, getOnpaste, getOnreset, getOnscroll, getOnsearch, getOnselect, getOnselectstart, getOnsubmit, getOntouchcancel, getOntouchend, getOntouchmove, getOntouchstart, getOnwebkitfullscreenchange, getOnwebkitfullscreenerror, getOuterHTML, getOuterText, getScrollHeight, getScrollLeft, getScrollTop, getScrollWidth, getStyle, getTabIndex, getTagName, getTitle, getWebkitdropzone, getWebkitRegionOverflow, hasAttribute, hasAttributeNS, insertAdjacentElement, insertAdjacentHTML, insertAdjacentText, isContentEditable, isDraggable, isHidden, isSpellcheck, isTranslate, removeAttribute, removeAttributeNode, removeAttributeNS, scrollByLines, scrollByPages, scrollIntoView, scrollIntoView, scrollIntoViewIfNeeded, scrollIntoViewIfNeeded, setAccessKey, setAttribute, setAttributeNode, setAttributeNodeNS, setAttributeNS, setClassName, setContentEditable, setDir, setDraggable, setHidden, setId, setInnerHTML, setInnerText, setLang, setOnabort, setOnbeforecopy, setOnbeforecut, setOnbeforepaste, setOnblur, setOnchange, setOnclick, setOncontextmenu, setOncopy, setOncut, setOndblclick, setOndrag, setOndragend, setOndragenter, setOndragleave, setOndragover, setOndragstart, setOndrop, setOnerror, setOnfocus, setOninput, setOninvalid, setOnkeydown, setOnkeypress, setOnkeyup, setOnload, setOnmousedown, setOnmousemove, setOnmouseout, setOnmouseover, setOnmouseup, setOnmousewheel, setOnpaste, setOnreset, setOnscroll, setOnsearch, setOnselect, setOnselectstart, setOnsubmit, setOntouchcancel, setOntouchend, setOntouchmove, setOntouchstart, setOnwebkitfullscreenchange, setOnwebkitfullscreenerror, setOuterHTML, setOuterText, setScrollLeft, setScrollTop, setSpellcheck, setTabIndex, setTitle, setTranslate, setWebkitdropzone, webkitMatchesSelector, webkitRequestFullscreen, webkitRequestFullScreen

Methods inherited from class elemental.js.dom.JsNode

appendChild, cloneNode, compareDocumentPosition, contains, getAttributes, getBaseURI, getChildNodes, getFirstChild, getLastChild, getLocalName, getNamespaceURI, getNextSibling, getNodeName, getNodeType, getNodeValue, getOwnerDocument, getParentElement, getParentNode, getPrefix, getPreviousSibling, getTextContent, hasAttributes, hasChildNodes, insertBefore, isDefaultNamespace, isEqualNode, isSameNode, isSupported, lookupNamespaceURI, lookupPrefix, normalize, removeChild, replaceChild, setNodeValue, setPrefix, setTextContent

Methods inherited from class elemental.js.dom.JsElementalMixinBase

addEventListener, addEventListener, beginElement, beginElementAt, dispatchEvent, endElement, endElementAt, getAnimatedClassName, getAnimatedHeight, getAnimatedHref, getAnimatedResult, getAnimatedTransform, getAnimatedWidth, getAnimatedX, getAnimatedY, getBBox, getChildElementCount, getCTM, getExternalResourcesRequired, getFarthestViewportElement, getFirstElementChild, getLastElementChild, getNearestViewportElement, getNextElementSibling, getPresentationAttribute, getPreserveAspectRatio, getPreviousElementSibling, getRequiredExtensions, getRequiredFeatures, getScreenCTM, getSvgStyle, getSystemLanguage, getTransformToElement, getViewBox, getXmllang, getXmlspace, getZoomAndPan, hasExtension, querySelector, querySelectorAll, removeEventListener, removeEventListener, setXmllang, setXmlspace, setZoomAndPan

Methods inherited from class elemental.js.util.JsElementalBase

at, at, intAt, intAt, length, numberAt, numberAt, setAt, setAt, setAt, setAt, setAt, setAt

Methods inherited from class com.google.gwt.core.client.JavaScriptObject

cast, createArray, createArray, createFunction, createObject, equals, hashCode, toSource, toString

Methods inherited from class java.lang.Object

finalize, getClass

Methods inherited from interface elemental.svg.SVGElement

getId, getOwnerSVGElement, getViewportElement, getXmlbase, setId, setXmlbase

Methods inherited from interface elemental.dom.Element

blur, click, focus, getAccessKey, getAttribute, getAttributeNode, getAttributeNodeNS, getAttributeNS, getBoundingClientRect, getChildElementCount, getChildren, getClassList, getClassName, getClientHeight, getClientLeft, getClientRects, getClientTop, getClientWidth, getContentEditable, getDataset, getDir, getElementsByClassName, getElementsByTagName, getElementsByTagNameNS, getFirstElementChild, getInnerHTML, getInnerText, getLang, getLastElementChild, getNextElementSibling, getOffsetHeight, getOffsetLeft, getOffsetParent, getOffsetTop, getOffsetWidth, getOnabort, getOnbeforecopy, getOnbeforecut, getOnbeforepaste, getOnblur, getOnchange, getOnclick, getOncontextmenu, getOncopy, getOncut, getOndblclick, getOndrag, getOndragend, getOndragenter, getOndragleave, getOndragover, getOndragstart, getOndrop, getOnerror, getOnfocus, getOninput, getOninvalid, getOnkeydown, getOnkeypress, getOnkeyup, getOnload, getOnmousedown, getOnmousemove, getOnmouseout, getOnmouseover, getOnmouseup, getOnmousewheel, getOnpaste, getOnreset, getOnscroll, getOnsearch, getOnselect, getOnselectstart, getOnsubmit, getOntouchcancel, getOntouchend, getOntouchmove, getOntouchstart, getOnwebkitfullscreenchange, getOnwebkitfullscreenerror, getOuterHTML, getOuterText, getPreviousElementSibling, getScrollHeight, getScrollLeft, getScrollTop, getScrollWidth, getStyle, getTabIndex, getTagName, getTitle, getWebkitdropzone, getWebkitRegionOverflow, hasAttribute, hasAttributeNS, insertAdjacentElement, insertAdjacentHTML, insertAdjacentText, isContentEditable, isDraggable, isHidden, isSpellcheck, isTranslate, querySelector, querySelectorAll, removeAttribute, removeAttributeNode, removeAttributeNS, scrollByLines, scrollByPages, scrollIntoView, scrollIntoView, scrollIntoViewIfNeeded, scrollIntoViewIfNeeded, setAccessKey, setAttribute, setAttributeNode, setAttributeNodeNS, setAttributeNS, setClassName, setContentEditable, setDir, setDraggable, setHidden, setInnerHTML, setInnerText, setLang, setOnabort, setOnbeforecopy, setOnbeforecut, setOnbeforepaste, setOnblur, setOnchange, setOnclick, setOncontextmenu, setOncopy, setOncut, setOndblclick, setOndrag, setOndragend, setOndragenter, setOndragleave, setOndragover, setOndragstart, setOndrop, setOnerror, setOnfocus, setOninput, setOninvalid, setOnkeydown, setOnkeypress, setOnkeyup, setOnload, setOnmousedown, setOnmousemove, setOnmouseout, setOnmouseover, setOnmouseup, setOnmousewheel, setOnpaste, setOnreset, setOnscroll, setOnsearch, setOnselect, setOnselectstart, setOnsubmit, setOntouchcancel, setOntouchend, setOntouchmove, setOntouchstart, setOnwebkitfullscreenchange, setOnwebkitfullscreenerror, setOuterHTML, setOuterText, setScrollLeft, setScrollTop, setSpellcheck, setTabIndex, setTitle, setTranslate, setWebkitdropzone, webkitMatchesSelector, webkitRequestFullscreen, webkitRequestFullScreen

Methods inherited from interface elemental.dom.Node

addEventListener, addEventListener, appendChild, cloneNode, compareDocumentPosition, contains, dispatchEvent, getAttributes, getBaseURI, getChildNodes, getFirstChild, getLastChild, getLocalName, getNamespaceURI, getNextSibling, getNodeName, getNodeType, getNodeValue, getOwnerDocument, getParentElement, getParentNode, getPrefix, getPreviousSibling, getTextContent, hasAttributes, hasChildNodes, insertBefore, isDefaultNamespace, isEqualNode, isSameNode, isSupported, lookupNamespaceURI, lookupPrefix, normalize, removeChild, removeEventListener, removeEventListener, replaceChild, setNodeValue, setPrefix, setTextContent

Methods inherited from interface elemental.svg.SVGTests

getRequiredExtensions, getRequiredFeatures, getSystemLanguage, hasExtension

Methods inherited from interface elemental.svg.SVGLangSpace

getXmllang, getXmlspace, setXmllang, setXmlspace

Methods inherited from interface elemental.svg.SVGExternalResourcesRequired

getExternalResourcesRequired

Methods inherited from interface elemental.svg.SVGStylable

getAnimatedClassName, getPresentationAttribute, getSvgStyle

Methods inherited from interface elemental.svg.SVGTransformable

getAnimatedTransform

Methods inherited from interface elemental.svg.SVGLocatable

getBBox, getCTM, getFarthestViewportElement, getNearestViewportElement, getScreenCTM, getTransformToElement

Methods inherited from interface elemental.util.IndexableInt

intAt, length

Methods inherited from interface elemental.util.IndexableNumber

numberAt

Constructor Detail

JsSVGPathElement

protected JsSVGPathElement()

Method Detail

getAnimatedNormalizedPathSegList

public final JsSVGPathSegList getAnimatedNormalizedPathSegList()

Specified by:

getAnimatedNormalizedPathSegList in interface SVGPathElement

getAnimatedPathSegList

public final JsSVGPathSegList getAnimatedPathSegList()

Specified by:

getAnimatedPathSegList in interface SVGPathElement

getNormalizedPathSegList

public final JsSVGPathSegList getNormalizedPathSegList()

Specified by:

getNormalizedPathSegList in interface SVGPathElement

getPathLength

public final JsSVGAnimatedNumber getPathLength()

Description copied from interface: SVGPathElement

Corresponds to attribute pathLength on the given <path> element.

Specified by:

getPathLength in interface SVGPathElement

getPathSegList

public final JsSVGPathSegList getPathSegList()

Specified by:

getPathSegList in interface SVGPathElement

createSVGPathSegArcAbs

public final JsSVGPathSegArcAbs createSVGPathSegArcAbs(float x,
                                        float y,
                                        float r1,
                                        float r2,
                                        float angle,
                                        boolean largeArcFlag,
                                        boolean sweepFlag)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegArcAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float r1
  The x-axis radius for the ellipse.
• float r2
  The y-axis radius for the ellipse.
• float angle
  The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
• boolean largeArcFlag
  The value of the large-arc-flag parameter.
• boolean sweepFlag
  The value of the large-arc-flag parameter.

Specified by:

createSVGPathSegArcAbs in interface SVGPathElement

createSVGPathSegArcRel

public final JsSVGPathSegArcRel createSVGPathSegArcRel(float x,
                                        float y,
                                        float r1,
                                        float r2,
                                        float angle,
                                        boolean largeArcFlag,
                                        boolean sweepFlag)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegArcRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float r1
  The x-axis radius for the ellipse.
• float r2
  The y-axis radius for the ellipse.
• float angle
  The rotation angle in degrees for the ellipse's x-axis relative to the x-axis of the user coordinate system.
• boolean largeArcFlag
  The value of the large-arc-flag parameter.
• boolean sweepFlag
  The value of the large-arc-flag parameter.

Specified by:

createSVGPathSegArcRel in interface SVGPathElement

createSVGPathSegClosePath

public final JsSVGPathSegClosePath createSVGPathSegClosePath()

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegClosePath object.

Specified by:

createSVGPathSegClosePath in interface SVGPathElement

createSVGPathSegCurvetoCubicAbs

public final JsSVGPathSegCurvetoCubicAbs createSVGPathSegCurvetoCubicAbs(float x,
                                                          float y,
                                                          float x1,
                                                          float y1,
                                                          float x2,
                                                          float y2)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoCubicAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x1
  The absolute X coordinate for the first control point.
• float y1
  The absolute Y coordinate for the first control point.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

Specified by:

createSVGPathSegCurvetoCubicAbs in interface SVGPathElement

createSVGPathSegCurvetoCubicRel

public final JsSVGPathSegCurvetoCubicRel createSVGPathSegCurvetoCubicRel(float x,
                                                          float y,
                                                          float x1,
                                                          float y1,
                                                          float x2,
                                                          float y2)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoCubicRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float x1
  The relative X coordinate for the first control point.
• float y1
  The relative Y coordinate for the first control point.
• float x2
  The relative X coordinate for the second control point.
• float y2
  The relative Y coordinate for the second control point.

Specified by:

createSVGPathSegCurvetoCubicRel in interface SVGPathElement

createSVGPathSegCurvetoCubicSmoothAbs

public final JsSVGPathSegCurvetoCubicSmoothAbs createSVGPathSegCurvetoCubicSmoothAbs(float x,
                                                                      float y,
                                                                      float x2,
                                                                      float y2)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothAbs object.

Parameters

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

Specified by:

createSVGPathSegCurvetoCubicSmoothAbs in interface SVGPathElement

createSVGPathSegCurvetoCubicSmoothRel

public final JsSVGPathSegCurvetoCubicSmoothRel createSVGPathSegCurvetoCubicSmoothRel(float x,
                                                                      float y,
                                                                      float x2,
                                                                      float y2)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoCubicSmoothRel object.

Parameters

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x2
  The absolute X coordinate for the second control point.
• float y2
  The absolute Y coordinate for the second control point.

Specified by:

createSVGPathSegCurvetoCubicSmoothRel in interface SVGPathElement

createSVGPathSegCurvetoQuadraticAbs

public final JsSVGPathSegCurvetoQuadraticAbs createSVGPathSegCurvetoQuadraticAbs(float x,
                                                                  float y,
                                                                  float x1,
                                                                  float y1)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.
• float x1
  The absolute X coordinate for the first control point.
• float y1
  The absolute Y coordinate for the first control point.

Specified by:

createSVGPathSegCurvetoQuadraticAbs in interface SVGPathElement

createSVGPathSegCurvetoQuadraticRel

public final JsSVGPathSegCurvetoQuadraticRel createSVGPathSegCurvetoQuadraticRel(float x,
                                                                  float y,
                                                                  float x1,
                                                                  float y1)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.
• float x1
  The relative X coordinate for the first control point.
• float y1
  The relative Y coordinate for the first control point.

Specified by:

createSVGPathSegCurvetoQuadraticRel in interface SVGPathElement

createSVGPathSegCurvetoQuadraticSmoothAbs

public final JsSVGPathSegCurvetoQuadraticSmoothAbs createSVGPathSegCurvetoQuadraticSmoothAbs(float x,
                                                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegCurvetoQuadraticSmoothAbs in interface SVGPathElement

createSVGPathSegCurvetoQuadraticSmoothRel

public final JsSVGPathSegCurvetoQuadraticSmoothRel createSVGPathSegCurvetoQuadraticSmoothRel(float x,
                                                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegCurvetoQuadraticSmoothRel object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegCurvetoQuadraticSmoothRel in interface SVGPathElement

createSVGPathSegLinetoAbs

public final JsSVGPathSegLinetoAbs createSVGPathSegLinetoAbs(float x,
                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoAbs in interface SVGPathElement

createSVGPathSegLinetoHorizontalAbs

public final JsSVGPathSegLinetoHorizontalAbs createSVGPathSegLinetoHorizontalAbs(float x)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoHorizontalAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoHorizontalAbs in interface SVGPathElement

createSVGPathSegLinetoHorizontalRel

public final JsSVGPathSegLinetoHorizontalRel createSVGPathSegLinetoHorizontalRel(float x)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoHorizontalRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoHorizontalRel in interface SVGPathElement

createSVGPathSegLinetoRel

public final JsSVGPathSegLinetoRel createSVGPathSegLinetoRel(float x,
                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoRel in interface SVGPathElement

createSVGPathSegLinetoVerticalAbs

public final JsSVGPathSegLinetoVerticalAbs createSVGPathSegLinetoVerticalAbs(float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoVerticalAbs object.

Parameters:

• float y
  The absolute Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoVerticalAbs in interface SVGPathElement

createSVGPathSegLinetoVerticalRel

public final JsSVGPathSegLinetoVerticalRel createSVGPathSegLinetoVerticalRel(float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegLinetoVerticalRel object.

Parameters:

• float y
  The relative Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegLinetoVerticalRel in interface SVGPathElement

createSVGPathSegMovetoAbs

public final JsSVGPathSegMovetoAbs createSVGPathSegMovetoAbs(float x,
                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegMovetoAbs object.

Parameters:

• float x
  The absolute X coordinate for the end point of this path segment.
• float y
  The absolute Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegMovetoAbs in interface SVGPathElement

createSVGPathSegMovetoRel

public final JsSVGPathSegMovetoRel createSVGPathSegMovetoRel(float x,
                                              float y)

Description copied from interface: SVGPathElement

Returns a stand-alone, parentless SVGPathSegMovetoRel object.

Parameters:

• float x
  The relative X coordinate for the end point of this path segment.
• float y
  The relative Y coordinate for the end point of this path segment.

Specified by:

createSVGPathSegMovetoRel in interface SVGPathElement

getPathSegAtLength

public final int getPathSegAtLength(float distance)

Description copied from interface: SVGPathElement

Returns the index into pathSegList which is distance units along the path, utilizing the user agent's distance-along-a-path algorithm.

Specified by:

getPathSegAtLength in interface SVGPathElement

getPointAtLength

public final JsSVGPoint getPointAtLength(float distance)

Description copied from interface: SVGPathElement

Returns the (x,y) coordinate in user space which is distance units along the path, utilizing the browser's distance-along-a-path algorithm.

Specified by:

getPointAtLength in interface SVGPathElement

getTotalLength

public final float getTotalLength()

Description copied from interface: SVGPathElement

Returns the computed value for the total length of the path using the browser's distance-along-a-path algorithm, as a distance in the current user coordinate system.

Specified by:

getTotalLength in interface SVGPathElement
