com.sencha.gxt.widget.core.client

Class TabPanel

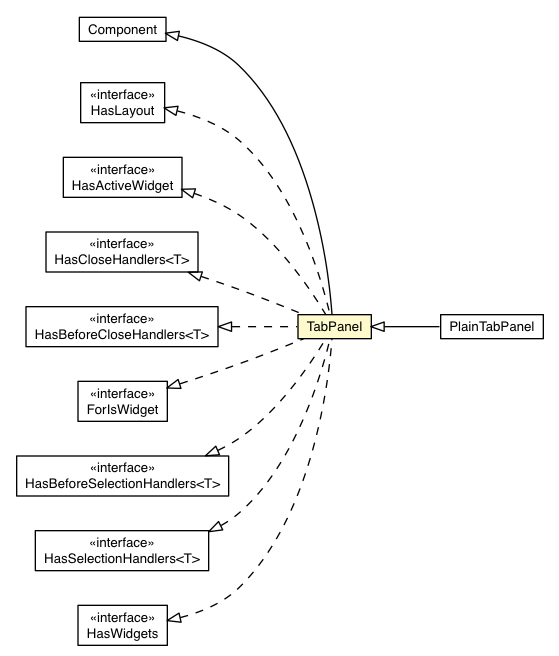

java.lang.Object

com.google.gwt.user.client.ui.UIObject

com.google.gwt.user.client.ui.Widget

com.sencha.gxt.widget.core.client.Component

com.sencha.gxt.widget.core.client.TabPanel

All Implemented Interfaces:

HasAttachHandlers, HasBeforeSelectionHandlers<Widget>, HasResizeHandlers, HasSelectionHandlers<Widget>, HasHandlers, EventListener, HasEnabled, HasVisibility, HasWidgets, IndexedPanel, IndexedPanel.ForIsWidget, IsWidget, HasGestureRecognizers, HasActiveWidget, HasLayout, BeforeCloseEvent.HasBeforeCloseHandlers<Widget>, BeforeHideEvent.HasBeforeHideHandlers, BeforeShowContextMenuEvent.HasBeforeShowContextMenuHandler, BeforeShowEvent.HasBeforeShowHandlers, BlurEvent.HasBlurHandlers, CloseEvent.HasCloseHandlers<Widget>, DisableEvent.HasDisableHandlers, EnableEvent.HasEnableHandlers, FocusEvent.HasFocusHandlers, HideEvent.HasHideHandlers, MoveEvent.HasMoveHandlers, ShowContextMenuEvent.HasShowContextMenuHandler, ShowEvent.HasShowHandlers, HasFocusSupport, HasItemId, Iterable<Widget>

Direct Known Subclasses:

PlainTabPanel

public class TabPanel
extends Component
implements IndexedPanel.ForIsWidget, HasActiveWidget, HasBeforeSelectionHandlers<Widget>, HasSelectionHandlers<Widget>, BeforeCloseEvent.HasBeforeCloseHandlers<Widget>, CloseEvent.HasCloseHandlers<Widget>, HasLayout, HasWidgets

A basic tab container.

Code snippet:

   TabPanel panel = new TabPanel();
   panel.setTabScroll(true);
   panel.setAnimScroll(true);
   panel.add(new Label("Tab 1 Content"), new TabItemConfig("Tab 1", true));
   panel.add(new Label("Tab 2 Content"), new TabItemConfig("Tab 2", true));


Nested Class Summary

Nested Classes

Modifier and Type	Class and Description
static interface	TabPanel.TabPanelAppearance
static interface	TabPanel.TabPanelBottomAppearance
static interface	TabPanel.TabPanelMessages

Nested classes/interfaces inherited from class com.google.gwt.user.client.ui.UIObject

UIObject.DebugIdImpl, UIObject.DebugIdImplEnabled

Nested classes/interfaces inherited from interface com.google.gwt.user.client.ui.IndexedPanel

IndexedPanel.ForIsWidget

Nested classes/interfaces inherited from interface com.google.gwt.user.client.ui.HasWidgets

HasWidgets.ForIsWidget

Field Summary

Fields inherited from class com.google.gwt.user.client.ui.UIObject

DEBUG_ID_PREFIX

Constructor Summary

Constructors

Constructor and Description
TabPanel() Creates a new tab panel with the default appearance.
TabPanel(TabPanel.TabPanelAppearance appearance) Creates a new tab panel with the specified appearance.

Method Summary

Methods

Modifier and Type	Method and Description
void	add(IsWidget widget, String text) Adds an item to the tab panel with the specified text.
void	add(IsWidget widget, TabItemConfig config) Adds an item to the tab panel with the specified tab configuration.
void	add(Widget w)
void	add(Widget widget, String text) Adds an item to the tab panel with the specified text.
void	add(Widget widget, TabItemConfig config) Adds an item to the tab panel with the specified tab configuration.
HandlerRegistration	addBeforeCloseHandler(BeforeCloseEvent.BeforeCloseHandler<Widget> handler) Adds a BeforeCloseEvent.BeforeCloseHandler handler for BeforeCloseEvent events.
HandlerRegistration	addBeforeSelectionHandler(BeforeSelectionHandler<Widget> handler)
HandlerRegistration	addCloseHandler(CloseEvent.CloseHandler<Widget> handler) Adds a CloseEvent.CloseHandler handler for CloseEvent events.
HandlerRegistration	addSelectionHandler(SelectionHandler<Widget> handler)
void	clear()
Widget	findItem(String id, boolean alsoCheckText) Searches for a child widget based on its id and optionally the text of the TabItemConfig.
void	forceLayout() Forces a class that implements HasLayout to lay out its child widgets.
Widget	getActiveWidget() Returns the active widget.
boolean	getAnimScroll() Returns true if scrolling is animated.
TabPanel.TabPanelAppearance	getAppearance()
boolean	getBodyBorder() Returns true if the body border is enabled.
TabItemConfig	getConfig(Widget widget) Returns the tab item config for the given widget.
CardLayoutContainer	getContainer() Returns the internal card layout container.
TabPanel.TabPanelMessages	getMessages() Returns the tab panel messages.
int	getMinTabWidth() Returns the minimum tab width.
boolean	getResizeTabs() Returns true if tab resizing is enabled.
int	getScrollDuration() Returns the scroll duration in milliseconds.
int	getTabMargin() Returns the panel's tab margin.
boolean	getTabScroll() Returns true if tab scrolling is enabled.
int	getTabWidth() Returns the default tab width.
Widget	getWidget(int index)
int	getWidgetCount()
int	getWidgetIndex(IsWidget child)
int	getWidgetIndex(Widget widget)
void	insert(Widget widget, int index, TabItemConfig config) Inserts the specified item into the tab panel.
boolean	isAutoSelect() Returns true if auto select is enabled.
boolean	isCloseContextMenu() Returns true if close context menu is enabled.
boolean	isLayoutRunning() Returns true if invoked when a class that implements HasLayout is in the process of laying out it's children.
boolean	isOrWasLayoutRunning() Returns true if invoked when a class that implements HasLayout is in the process of laying out it's children or has performed a lay out in the past.
Iterator<Widget>	iterator()
void	onBrowserEvent(Event event)
boolean	remove(int index)
boolean	remove(Widget child)
void	scrollToTab(Widget item, boolean animate) Scrolls to a particular tab if tab scrolling is enabled.
void	setActiveWidget(IsWidget widget) Sets the active widget.
void	setActiveWidget(Widget item) Sets the active widget.
void	setActiveWidget(Widget item, boolean fireEvents) Sets the active widget.
void	setAnimScroll(boolean animScroll) True to animate tab scrolling so that hidden tabs slide smoothly into view (defaults to true).
void	setAutoSelect(boolean autoSelect) True to have the first item selected when the panel is displayed for the first time if there is not selection (defaults to true).
void	setBodyBorder(boolean bodyBorder) True to display an interior border on the body element of the panel, false to hide it (defaults to true, pre-render).
void	setCloseContextMenu(boolean closeMenu) True to show the close context menu (defaults to false).
void	setMessages(TabPanel.TabPanelMessages messages) Sets the tab panel messages.
void	setMinTabWidth(int minTabWidth) The minimum width in pixels for each tab when resizeTabs = true (defaults to 30).
void	setResizeTabs(boolean resizeTabs) True to automatically resize tabs.
void	setScrollDuration(int scrollDuration) Sets the number of milliseconds that each scroll animation should last (defaults to 150).
void	setScrollIncrement(int scrollIncrement) Sets the number of pixels to scroll each time a tab scroll button is pressed (defaults to 100, or if setResizeTabs(boolean) = true, the calculated tab width).
void	setTabMargin(int tabMargin) The number of pixels of space to calculate into the sizing and scrolling of tabs (defaults to 2).
void	setTabScroll(boolean tabScroll) True to enable scrolling to tabs that may be invisible due to overflowing the overall TabPanel width.
void	setTabWidth(int tabWidth) Sets the initial width in pixels of each new tab (defaults to 120).
void	update(Widget widget, TabItemConfig config) Updates the appearance of the specified tab item.

Methods inherited from class com.sencha.gxt.widget.core.client.Component

addBeforeHideHandler, addBeforeShowContextMenuHandler, addBeforeShowHandler, addBlurHandler, addDisableHandler, addEnableHandler, addFocusHandler, addGestureRecognizer, addHideHandler, addMoveHandler, addResizeHandler, addShowContextMenuHandler, addShowHandler, addStyleOnOver, clearSizeCache, disable, disableEvents, enable, enableEvents, fireEvent, focus, getData, getElement, getFocusSupport, getGestureRecognizer, getGestureRecognizerCount, getHideMode, getId, getItemId, getOffsetHeight, getOffsetWidth, getShadow, getShadowPosition, getStateId, getTabIndex, getToolTip, hide, hideToolTip, isAllowTextSelection, isAutoHeight, isAutoWidth, isDeferHeight, isEnabled, isRendered, isStateful, isVisible, isVisible, mask, mask, removeToolTip, setAllowTextSelection, setBorders, setBounds, setBounds, setContextMenu, setData, setDeferHeight, setEnabled, setHeight, setHeight, setHideMode, setId, setItemId, setPagePosition, setPixelSize, setPosition, setShadow, setShadowPosition, setSize, setStateful, setStateId, setTabIndex, setToolTip, setToolTip, setToolTipConfig, setVisible, setWidth, setWidth, show, sync, syncSize, unmask

Methods inherited from class com.google.gwt.user.client.ui.Widget

addAttachHandler, addBitlessDomHandler, addDomHandler, addHandler, asWidget, asWidgetOrNull, getLayoutData, getParent, isAttached, removeFromParent, setLayoutData, sinkEvents, unsinkEvents

Methods inherited from class com.google.gwt.user.client.ui.UIObject

addStyleDependentName, addStyleName, ensureDebugId, ensureDebugId, getAbsoluteLeft, getAbsoluteTop, getOffsetHeight, getOffsetWidth, getStyleName, getStylePrimaryName, getTitle, isVisible, removeStyleDependentName, removeStyleName, setStyleDependentName, setStyleName, setStyleName, setStylePrimaryName, setTitle, setVisible, sinkBitlessEvent, toString

Methods inherited from class java.lang.Object

equals, getClass, hashCode, notify, notifyAll, wait, wait, wait

Methods inherited from interface com.google.gwt.event.shared.HasHandlers

fireEvent

Constructor Detail

TabPanel

public TabPanel()

Creates a new tab panel with the default appearance.

TabPanel

public TabPanel(TabPanel.TabPanelAppearance appearance)

Creates a new tab panel with the specified appearance.

Parameters:

appearance - the appearance of the tab panel

Method Detail

add

@UiChild(tagname="child")
public void add(IsWidget widget,
                      TabItemConfig config)

Adds an item to the tab panel with the specified tab configuration.

Parameters:

widget - the widget to add to the tab panel

config - the configuration of the tab

add

public void add(IsWidget widget,
       String text)

Adds an item to the tab panel with the specified text.

Parameters:

widget - the widget to add to the tab panel

text - the text for the tab

add

public void add(Widget w)

Specified by:

add in interface HasWidgets

add

public void add(Widget widget,
       String text)

Adds an item to the tab panel with the specified text. Shorthand for add(Widget, TabItemConfig).

Parameters:

widget - the widget to add to the tab panel

text - the text for the tab

add

public void add(Widget widget,
       TabItemConfig config)

Adds an item to the tab panel with the specified tab configuration.

Parameters:

widget - the item to add to the tab panel

config - the configuration of the tab

addBeforeCloseHandler

public HandlerRegistration addBeforeCloseHandler(BeforeCloseEvent.BeforeCloseHandler<Widget> handler)

Description copied from interface: BeforeCloseEvent.HasBeforeCloseHandlers

Adds a BeforeCloseEvent.BeforeCloseHandler handler for BeforeCloseEvent events.

Specified by:

addBeforeCloseHandler in interface BeforeCloseEvent.HasBeforeCloseHandlers<Widget>

Parameters:

handler - the handler

Returns:

the registration for the event

addBeforeSelectionHandler

public HandlerRegistration addBeforeSelectionHandler(BeforeSelectionHandler<Widget> handler)

Specified by:

addBeforeSelectionHandler in interface HasBeforeSelectionHandlers<Widget>

addCloseHandler

public HandlerRegistration addCloseHandler(CloseEvent.CloseHandler<Widget> handler)

Description copied from interface: CloseEvent.HasCloseHandlers

Adds a CloseEvent.CloseHandler handler for CloseEvent events.

Specified by:

addCloseHandler in interface CloseEvent.HasCloseHandlers<Widget>

Parameters:

handler - the handler

Returns:

the registration for the event

addSelectionHandler

public HandlerRegistration addSelectionHandler(SelectionHandler<Widget> handler)

Specified by:

addSelectionHandler in interface HasSelectionHandlers<Widget>

clear

public void clear()

Specified by:

clear in interface HasWidgets

findItem

public Widget findItem(String id,
              boolean alsoCheckText)

Searches for a child widget based on its id and optionally the text of the TabItemConfig.

Iterates through each item and checks if its id matches the parameter id. Then, if the alsoCheckText parameter is true, this also looks at the last passed in string of html or text for each TabItemConfig. If that content matches, then it returns that tab.

With alsoCheckText set to true, the first matching item will be returned.

Parameters:

id - the item id

alsoCheckText - false to only compare with id, true to compare both the items id and text

Returns:

the item

forceLayout

public void forceLayout()

Description copied from interface: HasLayout

Forces a class that implements HasLayout to lay out its child widgets.

Specified by:

forceLayout in interface HasLayout

getActiveWidget

public Widget getActiveWidget()

Description copied from interface: HasActiveWidget

Returns the active widget.

Specified by:

getActiveWidget in interface HasActiveWidget

Returns:

the active widget

getAppearance

public TabPanel.TabPanelAppearance getAppearance()

getAnimScroll

public boolean getAnimScroll()

Returns true if scrolling is animated.

Returns:

the animation scroll state

getBodyBorder

public boolean getBodyBorder()

Returns true if the body border is enabled.

Returns:

the body border state

getConfig

public TabItemConfig getConfig(Widget widget)

Returns the tab item config for the given widget.

Parameters:

widget - the widget

Returns:

the config or null

getContainer

public CardLayoutContainer getContainer()

Returns the internal card layout container.

Returns:

the card layout container

getMessages

public TabPanel.TabPanelMessages getMessages()

Returns the tab panel messages.

Returns:

the messages

getMinTabWidth

public int getMinTabWidth()

Returns the minimum tab width.

Returns:

the minimum tab width

getResizeTabs

public boolean getResizeTabs()

Returns true if tab resizing is enabled.

Returns:

the tab resizing state

getScrollDuration

public int getScrollDuration()

Returns the scroll duration in milliseconds.

Returns:

the duration

getTabMargin

public int getTabMargin()

Returns the panel's tab margin.

Returns:

the margin

getTabScroll

public boolean getTabScroll()

Returns true if tab scrolling is enabled.

Returns:

the tab scroll state

getTabWidth

public int getTabWidth()

Returns the default tab width.

Returns:

the width

getWidget

public Widget getWidget(int index)

Specified by:

getWidget in interface IndexedPanel

getWidgetCount

public int getWidgetCount()

Specified by:

getWidgetCount in interface IndexedPanel

getWidgetIndex

public int getWidgetIndex(IsWidget child)

Specified by:

getWidgetIndex in interface IndexedPanel.ForIsWidget

getWidgetIndex

public int getWidgetIndex(Widget widget)

Specified by:

getWidgetIndex in interface IndexedPanel

insert

public void insert(Widget widget,
          int index,
          TabItemConfig config)

Inserts the specified item into the tab panel.

Parameters:

widget - the item to insert

index - the insert index

config - the configuration of the tab item

isAutoSelect

public boolean isAutoSelect()

Returns true if auto select is enabled.

Returns:

the auto select state

isCloseContextMenu

public boolean isCloseContextMenu()

Returns true if close context menu is enabled.

Returns:

the close menu state

isLayoutRunning

public boolean isLayoutRunning()

Description copied from interface: HasLayout

Returns true if invoked when a class that implements HasLayout is in the process of laying out it's children. Useful in avoiding recursive lay out operations.

Specified by:

isLayoutRunning in interface HasLayout

Returns:

true if in the process of performing a lay out operation

isOrWasLayoutRunning

public boolean isOrWasLayoutRunning()

Description copied from interface: HasLayout

Returns true if invoked when a class that implements HasLayout is in the process of laying out it's children or has performed a lay out in the past.

Specified by:

isOrWasLayoutRunning in interface HasLayout

Returns:

true if a layout is running or has run, false if a layout has not yet been performed.

iterator

public Iterator<Widget> iterator()

Specified by:

iterator in interface HasWidgets

Specified by:

iterator in interface Iterable<Widget>

onBrowserEvent

public void onBrowserEvent(Event event)

Specified by:

onBrowserEvent in interface EventListener

Overrides:

onBrowserEvent in class Component

remove

public boolean remove(int index)

Specified by:

remove in interface IndexedPanel

remove

public boolean remove(Widget child)

Specified by:

remove in interface HasWidgets

scrollToTab

public void scrollToTab(Widget item,
               boolean animate)

Scrolls to a particular tab if tab scrolling is enabled.

Parameters:

item - the item to scroll to

animate - true to animate the scroll

setActiveWidget

public void setActiveWidget(IsWidget widget)

Sets the active widget.

Parameters:

widget - the widget

setActiveWidget

public void setActiveWidget(Widget item,
                   boolean fireEvents)

Sets the active widget.

Parameters:

item - the widget

fireEvents - true to fire events

setActiveWidget

public void setActiveWidget(Widget item)

Description copied from interface: HasActiveWidget

Sets the active widget.

Specified by:

setActiveWidget in interface HasActiveWidget

Parameters:

item - the widget

setAnimScroll

public void setAnimScroll(boolean animScroll)

True to animate tab scrolling so that hidden tabs slide smoothly into view (defaults to true). Only applies when tabScroll = true.

Parameters:

animScroll - the animation scroll state

setAutoSelect

public void setAutoSelect(boolean autoSelect)

True to have the first item selected when the panel is displayed for the first time if there is not selection (defaults to true).

Parameters:

autoSelect - the auto select state

setBodyBorder

public void setBodyBorder(boolean bodyBorder)

True to display an interior border on the body element of the panel, false to hide it (defaults to true, pre-render).

Parameters:

bodyBorder - the body border style

setCloseContextMenu

public void setCloseContextMenu(boolean closeMenu)

True to show the close context menu (defaults to false).

Parameters:

closeMenu - true to show it

setMessages

public void setMessages(TabPanel.TabPanelMessages messages)

Sets the tab panel messages.

Parameters:

messages - the messages

setMinTabWidth

public void setMinTabWidth(int minTabWidth)

The minimum width in pixels for each tab when resizeTabs = true (defaults to 30).

Parameters:

minTabWidth - the minimum tab width

setResizeTabs

public void setResizeTabs(boolean resizeTabs)

True to automatically resize tabs. The resize operation takes into consideration the current width of the tab panel as well as the current values of setTabWidth(int) and setMinTabWidth(int). The resulting tab width will not be less than the value specified by setMinTabWidth nor greater than the value specified by setTabWidth. To automatically resize the tabs to completely fill the tab strip, use setTabWidth(Integer.MAX_VALUE) and setResizeTabs(true).

Parameters:

resizeTabs - true to enable tab resizing

setScrollDuration

public void setScrollDuration(int scrollDuration)

Sets the number of milliseconds that each scroll animation should last (defaults to 150).

Parameters:

scrollDuration - the scroll duration

setScrollIncrement

public void setScrollIncrement(int scrollIncrement)

Sets the number of pixels to scroll each time a tab scroll button is pressed (defaults to 100, or if setResizeTabs(boolean) = true, the calculated tab width). Only applies when setTabScroll(boolean) = true.

Parameters:

scrollIncrement - the scroll increment

setTabMargin

public void setTabMargin(int tabMargin)

The number of pixels of space to calculate into the sizing and scrolling of tabs (defaults to 2).

Parameters:

tabMargin - the tab margin

setTabScroll

public void setTabScroll(boolean tabScroll)

True to enable scrolling to tabs that may be invisible due to overflowing the overall TabPanel width. Only available with tabs on top. (defaults to false).

Parameters:

tabScroll - true to enable tab scrolling

setTabWidth

public void setTabWidth(int tabWidth)

Sets the initial width in pixels of each new tab (defaults to 120).

Parameters:

tabWidth - the tab width

update

public void update(Widget widget,
          TabItemConfig config)

Updates the appearance of the specified tab item. Must be invoked after changing the tab item configuration.

Parameters:

widget - the widget for the tab to update

config - the new or updated tab item configuration
