elemental.js.svg

Class JsSVGAngle

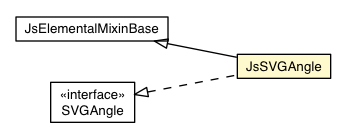

java.lang.Object

com.google.gwt.core.client.JavaScriptObject

elemental.js.util.JsElementalBase

elemental.js.dom.JsElementalMixinBase

elemental.js.svg.JsSVGAngle

All Implemented Interfaces:

ElementalMixinBase, ElementTraversal, NodeSelector, EventTarget, ElementTimeControl, SVGAngle, SVGExternalResourcesRequired, SVGFilterPrimitiveStandardAttributes, SVGFitToViewBox, SVGLangSpace, SVGLocatable, SVGStylable, SVGTests, SVGTransformable, SVGURIReference, SVGZoomAndPan, Indexable, IndexableInt, IndexableNumber, Mappable, Settable, SettableInt, SettableNumber

public class JsSVGAngle
extends JsElementalMixinBase
implements SVGAngle

Field Summary

Fields inherited from interface elemental.svg.SVGAngle

SVG_ANGLETYPE_DEG, SVG_ANGLETYPE_GRAD, SVG_ANGLETYPE_RAD, SVG_ANGLETYPE_UNKNOWN, SVG_ANGLETYPE_UNSPECIFIED

Fields inherited from interface elemental.svg.SVGZoomAndPan

SVG_ZOOMANDPAN_DISABLE, SVG_ZOOMANDPAN_MAGNIFY, SVG_ZOOMANDPAN_UNKNOWN

Constructor Summary

Constructors

Modifier	Constructor and Description
protected	JsSVGAngle()

Method Summary

Methods

Modifier and Type	Method and Description
void	convertToSpecifiedUnits(int unitType) Preserve the same underlying stored value, but reset the stored unit identifier to the given unitType.
int	getUnitType() The type of the value as specified by one of the SVG_ANGLETYPE_* constants defined on this interface.
float	getValue() The value as a floating point value, in user units.
String	getValueAsString() The value as a string value, in the units expressed by unitType.
float	getValueInSpecifiedUnits() The value as a floating point value, in the units expressed by unitType.
void	newValueSpecifiedUnits(int unitType, float valueInSpecifiedUnits) Reset the value as a number with an associated unitType, thereby replacing the values for all of the attributes on the object.
void	setValue(float param_value)
void	setValueAsString(String param_valueAsString)
void	setValueInSpecifiedUnits(float param_valueInSpecifiedUnits)

Methods inherited from class elemental.js.dom.JsElementalMixinBase

addEventListener, addEventListener, beginElement, beginElementAt, dispatchEvent, endElement, endElementAt, getAnimatedClassName, getAnimatedHeight, getAnimatedHref, getAnimatedResult, getAnimatedTransform, getAnimatedWidth, getAnimatedX, getAnimatedY, getBBox, getChildElementCount, getCTM, getExternalResourcesRequired, getFarthestViewportElement, getFirstElementChild, getLastElementChild, getNearestViewportElement, getNextElementSibling, getPresentationAttribute, getPreserveAspectRatio, getPreviousElementSibling, getRequiredExtensions, getRequiredFeatures, getScreenCTM, getSvgStyle, getSystemLanguage, getTransformToElement, getViewBox, getXmllang, getXmlspace, getZoomAndPan, hasExtension, querySelector, querySelectorAll, removeEventListener, removeEventListener, setXmllang, setXmlspace, setZoomAndPan

Methods inherited from class elemental.js.util.JsElementalBase

at, at, intAt, intAt, length, numberAt, numberAt, setAt, setAt, setAt, setAt, setAt, setAt

Methods inherited from class com.google.gwt.core.client.JavaScriptObject

cast, createArray, createArray, createFunction, createObject, equals, hashCode, toSource, toString

Methods inherited from class java.lang.Object

finalize, getClass

Methods inherited from interface elemental.util.IndexableInt

intAt, length

Methods inherited from interface elemental.util.IndexableNumber

numberAt

Constructor Detail

JsSVGAngle

protected JsSVGAngle()

Method Detail

getUnitType

public final int getUnitType()

Description copied from interface: SVGAngle

The type of the value as specified by one of the SVG_ANGLETYPE_* constants defined on this interface.

Specified by:

getUnitType in interface SVGAngle

getValue

public final float getValue()

Description copied from interface: SVGAngle

The value as a floating point value, in user units. Setting this attribute will cause valueInSpecifiedUnits and valueAsString to be updated automatically to reflect this setting.

Exceptions on setting: a DOMException with code NO_MODIFICATION_ALLOWED_ERR is raised when the length corresponds to a read only attribute or when the object itself is read only.

Specified by:

getValue in interface SVGAngle

setValue

public final void setValue(float param_value)

Specified by:

setValue in interface SVGAngle

getValueAsString

public final String getValueAsString()

Description copied from interface: SVGAngle

The value as a string value, in the units expressed by unitType. Setting this attribute will cause value, valueInSpecifiedUnits and unitType to be updated automatically to reflect this setting.

Exceptions on setting:

• a DOMException with code SYNTAX_ERR is raised if the assigned string cannot be parsed as a valid <angle>.
• a DOMException with code NO_MODIFICATION_ALLOWED_ERR is raised when the length corresponds to a read only attribute or when the object itself is read only.

Specified by:

getValueAsString in interface SVGAngle

setValueAsString

public final void setValueAsString(String param_valueAsString)

Specified by:

setValueAsString in interface SVGAngle

getValueInSpecifiedUnits

public final float getValueInSpecifiedUnits()

Description copied from interface: SVGAngle

The value as a floating point value, in the units expressed by unitType. Setting this attribute will cause value and valueAsString to be updated automatically to reflect this setting.

Exceptions on setting: a DOMException with code NO_MODIFICATION_ALLOWED_ERR is raised when the length corresponds to a read only attribute or when the object itself is read only.

Specified by:

getValueInSpecifiedUnits in interface SVGAngle

setValueInSpecifiedUnits

public final void setValueInSpecifiedUnits(float param_valueInSpecifiedUnits)

Specified by:

setValueInSpecifiedUnits in interface SVGAngle

convertToSpecifiedUnits

public final void convertToSpecifiedUnits(int unitType)

Description copied from interface: SVGAngle

Preserve the same underlying stored value, but reset the stored unit identifier to the given unitType. Object attributes unitType, valueInSpecifiedUnits and valueAsString might be modified as a result of this method.

Specified by:

convertToSpecifiedUnits in interface SVGAngle

newValueSpecifiedUnits

public final void newValueSpecifiedUnits(int unitType,
                          float valueInSpecifiedUnits)

Description copied from interface: SVGAngle

Reset the value as a number with an associated unitType, thereby replacing the values for all of the attributes on the object.

Exceptions:

• a DOMException with code NOT_SUPPORTED_ERR is raised if unitType is SVG_ANGLETYPE_UNKNOWN or not a valid unit type constant (one of the other SVG_ANGLETYPE_* constants defined on this interface).
• a DOMException with code NO_MODIFICATION_ALLOWED_ERR is raised when the length corresponds to a read only attribute or when the object itself is read only.

Specified by:

newValueSpecifiedUnits in interface SVGAngle
