Getting Started with Sencha Touch

What is Sencha Touch?

Sencha Touch enables you to quickly and easily create HTML5 based mobile apps that work on Android, iOS, and Blackberry devices, and produce a native-app-like experience inside a browser or in a hybrid shell.

Prerequisites

First, you need to download the free Sencha Touch SDK and Sencha Cmd from the Sencha website. You will also need the following:

  • A web server running locally on your computer
  • A modern web browser; Chrome and Safari are recommended

If you are running the IIS web server on Windows, please note that you have to manually add application/x-json as a MIME Type for Sencha Touch to work properly. For information on adding this MIME type see the following link: http://stackoverflow.com/a/1121114/273985.

Installation

First, extract the SDK zip file to your projects directory. Ideally, this folder will be accessible to your HTTP server. For example, you should be able to navigate to http://localhost/sencha-touch-2.1.0-gpl from your web browser and see the Sencha Touch documentation.

You also need to run the Sencha Cmd installer. The installer adds the sencha command line tool to your path, enabling you to generate a fresh application template, among other things. To check that you have correctly installed Sencha Cmd, change to your Sencha Touch directory and type in the sencha command, as shown, for example, in the following code sample:

$ cd ~/webroot/sencha-touch-2.1.0-gpl/
$ sencha
Sencha Cmd v3.0.0
...

Note: When using the sencha command, you must be inside either the downloaded SDK directory or a generated Touch app. For further details see the Sencha Cmd documentation.

Generating Your First App

Now that you have Sencha Touch and Sencha Cmd installed, let us generate an application. While still in the Sencha Touch SDK folder, type in the following:

$ sencha app create MyApp ../MyApp
[INFO] Created file ...
...

This generates a skeleton Sencha Touch application namespaced to the MyApp variable and located in the ../MyApp directory (one level up from the Sencha Touch SDK directory). The skeleton app contains all the files you need to create a Sencha Touch application, including the default index.html file, a copy of the Touch SDK, the CSS file, images and configuration files for creating native packages for your app.

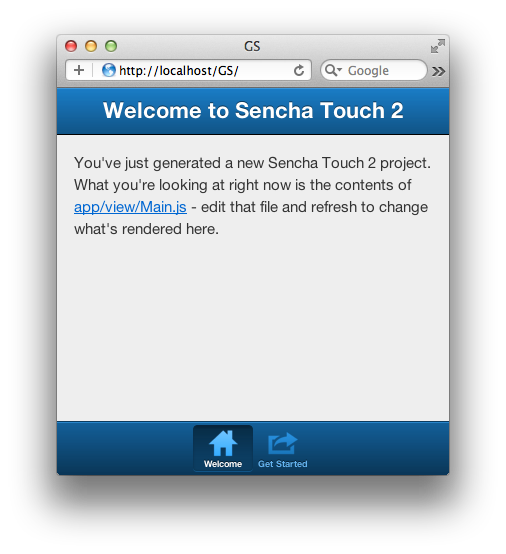

Let us verify if your application has generated successfully by opening it in a web browser. Assuming that you extracted the SDK to your webroot folder, you should be able to nativate to http://localhost/MyApp and see the default app as shown in the following image:

Explore the Code

When you open the MyApp directory in your favorite IDE or text editor, you notice that the directory structure looks like shown in the following image:

The following listing provides a short description of each file and directory, the complete list of the generated files can be found in the Sencha Cmd documentation:

  • app - The directory containing the Models, Views, Controllers, and Stores for your app.
  • app.js - The main Javascript entry point for your app.
  • app.json - The configuration file for your app.
  • index.html - The HTML file for your app.
  • packager.json - The configuration file used by Sencha Cmd for creating native packages for your application.
  • resources - The directory containing the CSS and the images for your app
  • sdk - A copy of the Sencha Touch SDK. Normally, you should not need to change the contents of this folder.

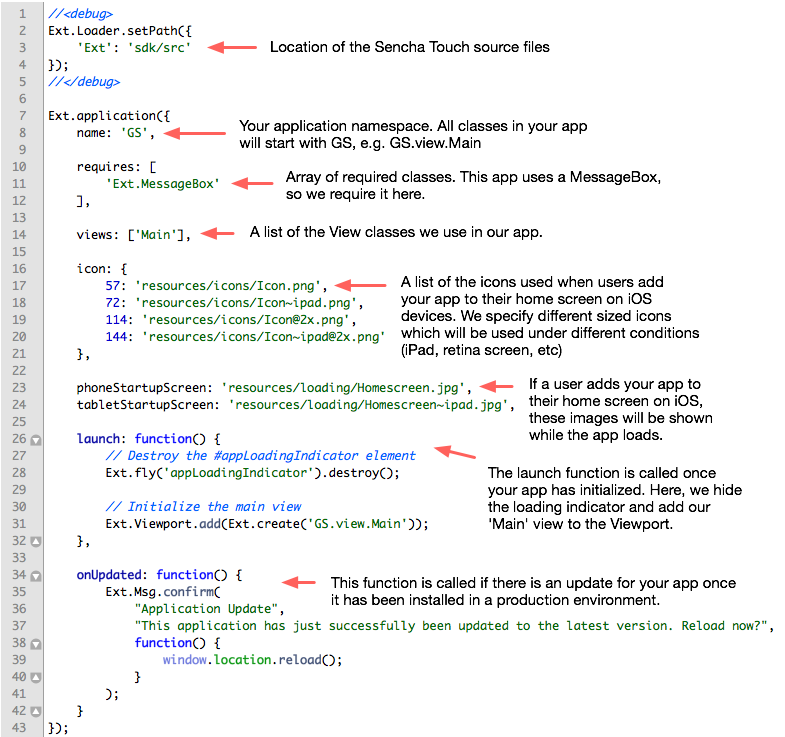

Open app.js, the main entry point for your app, in your editor:

The launch function is the entry point to your application. In the default application, we first hide the application loading indicator, then we create an instance of our Main view and add it to the Viewport.

The Viewport is a Card layout to which you can add application components. The default app adds the Main view to the viewport so it becomes visible on the screen.

Let us look at the code inside the Main view.

Open app/view/Main.js in your code editor and edit line 10 as follows:

title: 'Home Tab'

then change line 19 as follows:

title: 'Woohoo!'

Also, change lines 22-26 as follows:

html: [
    "I changed the default <b>HTML Contents</b> to something different!"
].join("")

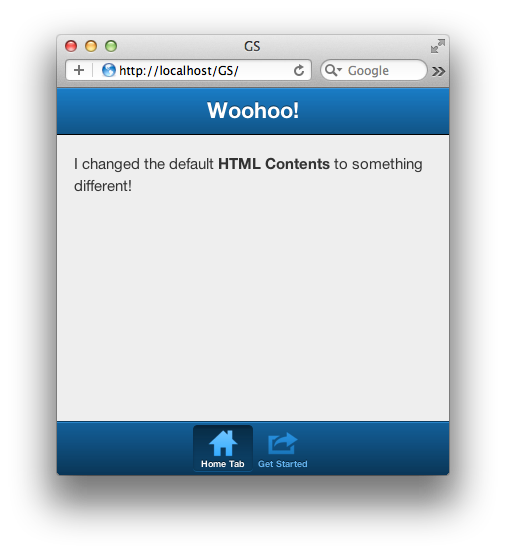

Eventually refresh the app in your browser to see the effects of your changes:

Next Steps

The next step is to follow the First Application guide, which builds on the operations from this guide, and which guides your through creating a simple but powerful app in around 15 minutes. You can also follow along with the video at the start of this guide.

If you would like to skip ahead or find out more detailed information about other aspects of the framework, we recommend referring to the following guides and resources:
