Using Carousels in Sencha Touch 2

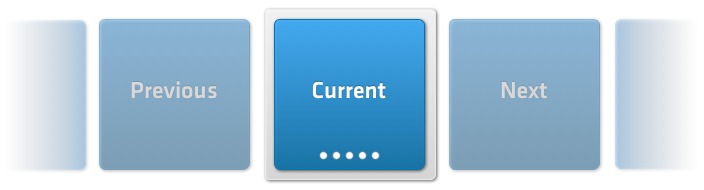

Carousels, like tabs, are a great way to allow the user to swipe through multiple full-screen pages. A Carousel shows only one of its pages at a time but allows you to swipe through with your finger. You can think of a Carousel as a single active item with the rest of the items stretching away left and right. Indicator dots show you how many available screens there are to swipe through:

Carousels can be oriented either horizontally or vertically and are easy to configure - they just work like any other Container. Here's how to set up a simple horizontal Carousel:

Ext.create('Ext.Carousel', {
    fullscreen: true,

    defaults: {
        styleHtmlContent: true
    },

    items: [
        {
            html : 'Item 1',
            style: 'background-color: #5E99CC'
        },
        {
            html : 'Item 2',
            style: 'background-color: #759E60'
        },
        {
            html : 'Item 3'
        }
    ]
});

Swiping your finger left and right over the carousel now swaps between the two items we defined above. It also updates the indicator icon to let you know which page you're currently on. We can also make Carousels orient themselves vertically:

Ext.create('Ext.Carousel', {
    fullscreen: true,
    direction: 'vertical',

    defaults: {
        styleHtmlContent: true
    },

    items: [
        {
            html : 'Item 1',
            style: 'background-color: #759E60'
        },
        {
            html : 'Item 2',
            style: 'background-color: #5E99CC'
        }
    ]
});

You can put anything in a Carousel, for example here we place a list and a form into a horizontal carousel

Ext.create('Ext.Carousel', {
    fullscreen: true,

    items: [
        {
            xtype: 'list',

            items: {
                xtype: 'toolbar',
                docked: 'top',
                title: 'Sencha Touch Team'
            },

            store: {
                fields: ['name'],
                data: [
                    {name: 'Rob'},
                    {name: 'Ed'},
                    {name: 'Jacky'},
                    {name: 'Jamie'},
                    {name: 'Tommy'},
                    {name: 'Abe'}
                ]
            },

            itemTpl: '{name}'
        },
        {
            xtype: 'fieldset',
            items: [
                {
                    xtype: 'toolbar',
                    docked: 'top',
                    title: 'Login'
                },
                {
                    xtype: 'textfield',
                    label: 'Name'
                },
                {
                    xtype: 'passwordfield',
                    label: 'Password'
                }
            ]
        }
    ]
});
