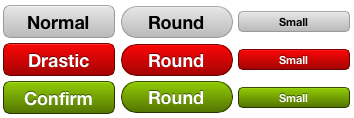

Ext.Button

Specifies the border for this component. The border can be a single numeric value to apply to all sides or it can be a CSS style specification for each style, for example: '10 5 3 10'.

Available since: 1.1.0

Center the Component. Defaults to false.

Defaults to: false

Available since: 1.1.0

CSS Class to be added to a components root level element to give distinction to it via styling.

Available since: 1.1.0

The sizing and positioning of the component Elements is the responsibility of

the Component's layout manager which creates and manages the type of layout specific to the component.

If the layout configuration is not explicitly specified for a general purpose compopnent the default layout manager will be used.

Available since: 1.1.0

Optional. Specify an existing HTML element, or the id of an existing HTML element to use as the content for this component.

• Description :
  This config option is used to take an existing HTML element and place it in the layout element of a new component (it simply moves the specified DOM element after the Component is rendered to use as the content.
• Notes :
  The specified HTML element is appended to the layout element of the component after any configured HTML has been inserted, and so the document will not contain this element at the time the render event is fired.
  The specified HTML element used will not participate in any layout scheme that the Component may use. It is just HTML. Layouts operate on child items.
  Add either the x-hidden or the x-hide-display CSS class to prevent a brief flicker of the content before it is rendered to the panel.

Available since: 1.1.0

The initial set of data to apply to the tpl to update the content area of the Component.

Available since: 1.1.0

CSS class to add when the Component is disabled. Defaults to 'x-item-disabled'.

Defaults to: 'x-item-disabled'

Available since: 1.1.0

Allows the component to be dragged via the touch event.

Available since: 1.1.0

Create the Component as a floating and use absolute positioning. Defaults to false.

Defaults to: false

Available since: 1.1.0

The class that is being added to this component when its floating. (defaults to x-floating)

Defaults to: 'x-floating'

Available since: 1.1.0

Force the component to take up 100% width and height available. Defaults to false. Setting this configuration immediately sets the monitorOrientation config to true. Setting this to true will render the component instantly.

Defaults to: false

Available since: 1.1.0

The height of this component in pixels.

Available since: 1.1.0

True to automatically bind a tap listener to the mask that hides the window. Defaults to true. Note: if you set this property to false you have to programmaticaly hide the overlay.

Defaults to: true

Available since: 1.1.0

An HTML fragment, or a DomHelper specification to use as the layout element content (defaults to ''). The HTML content is added after the component is rendered, so the document will not contain this HTML at the time the render event is fired. This content is inserted into the body before any configured contentEl is appended.

Available since: 1.1.0

Set this to true to automatically relayout this component on orientation change. This property is set to true by default if a component is floating unless you specifically set this to false. Also note that you dont have to set this property to true if this component is a child of a fullscreen container, since fullscreen components are also laid out automatically on orientation change. Defaults to null

Available since: 1.1.0

(optional)

A config object containing one or more event handlers to be added to this object during initialization. This should be a valid listeners config object as specified in the addListener example for attaching multiple handlers at once.

DOM events from ExtJs Components

While some ExtJs Component classes export selected DOM events (e.g. "click", "mouseover" etc), this

is usually only done when extra value can be added. For example the DataView's click event passing the node clicked on. To access DOM events directly from a child element of a Component, we need to specify the element option to identify the Component property to add a DOM listener to:

new Ext.Panel({
    width: 400,
    height: 200,
    dockedItems: [{
        xtype: 'toolbar'
    }],
    listeners: {
        click: {
            element: 'el', //bind to the underlying el property on the panel
            fn: function(){ console.log('click el'); }
        },
        dblclick: {
            element: 'body', //bind to the underlying body property on the panel
            fn: function(){ console.log('dblclick body'); }
        }
    }
});

Available since: 1.1.0

Specifies the margin for this component. The margin can be a single numeric value to apply to all sides or it can be a CSS style specification for each style, for example: '10 5 3 10'.

Available since: 1.1.0

The maximum value in pixels which this Component will set its height to.

Warning: This will override any size management applied by layout managers.

Available since: 1.1.0

The maximum value in pixels which this Component will set its width to.

Warning: This will override any size management applied by layout managers.

Available since: 1.1.0

The minimum value in pixels which this Component will set its height to.

Warning: This will override any size management applied by layout managers.

Available since: 1.1.0

The minimum value in pixels which this Component will set its width to.

Warning: This will override any size management applied by layout managers.

Available since: 1.1.0

True to make the Component modal and mask everything behind it when displayed, false to display it without restricting access to other UI elements (defaults to false).

Defaults to: false

Available since: 1.1.0

Monitor Orientation change

Defaults to: false

Available since: 1.1.0

Specifies the padding for this component. The padding can be a single numeric value to apply to all sides or it can be a CSS style specification for each style, for example: '10 5 3 10'.

Available since: 1.1.0

An object or array of objects that will provide custom functionality for this component. The only requirement for a valid plugin is that it contain an init method that accepts a reference of type Ext.Component. When a component is created, if any plugins are available, the component will call the init method on each plugin, passing a reference to itself. Each plugin can then call methods or respond to events on the component as needed to provide its functionality.

Available since: 1.1.0

An object containing properties specifying DomQuery selectors which identify child elements created by the render process.

After the Component's internal structure is rendered according to the renderTpl, this object is iterated through, and the found Elements are added as properties to the Component using the renderSelector property name.

For example, a Component which rendered an image, and description into its element might use the following properties coded into its prototype:

renderTpl: '<img src="{imageUrl}" class="x-image-component-img"><div class="x-image-component-desc">{description}</div>',

renderSelectors: {
    image: 'img.x-image-component-img',
    descEl: 'div.x-image-component-desc'
}

After rendering, the Component would have a property image referencing its child img Element, and a property descEl referencing the div Element which contains the description.

Available since: 1.1.0

Specify the id of the element, a DOM element or an existing Element that this component will be rendered into.

See render also.

Available since: 1.1.0

An XTemplate used to create the internal structure inside this Component's encapsulating Element.

You do not normally need to specify this. For the base classes Ext.Component and Ext.Container, this defaults to null which means that they will be initially rendered with no internal structure; they render their Element empty. The more specialized ExtJS and Touch classes which use a more complex DOM structure, provide their own template definitions.

This is intended to allow the developer to create application-specific utility Components with customized internal structure.

Upon rendering, any created child elements may be automatically imported into object properties using the renderSelectors option.

Available since: 1.1.0

Configure the component to be scrollable. Acceptable values are:

• 'horizontal', 'vertical', 'both' to enabling scrolling for that direction.
• A Scroller configuration.
• false to explicitly disable scrolling.

Enabling scrolling immediately sets the monitorOrientation config to true (for Panel)

Available since: 1.1.0

The type of animation you want to use when this component is shown. If you set this this hide animation will automatically be the opposite.

Available since: 1.1.0

True to stop the event that fires when you click outside the floating component. Defalts to true.

Defaults to: true

Available since: 1.1.0

A custom style specification to be applied to this component's Element. Should be a valid argument to Ext.Element.applyStyles.

        new Ext.Panel({
            title: 'Some Title',
            renderTo: Ext.getBody(),
            width: 400, height: 300,
            layout: 'form',
            items: [{
                xtype: 'textareafield',
                style: {
                    width: '95%',
                    marginBottom: '10px'
                }
            },
            new Ext.Button({
                text: 'Send',
                minWidth: '100',
                style: {
                    marginBottom: '10px'
                }
            })
            ]
        });


Available since: 1.1.0

The class that is added to the content target when you set styleHtmlContent to true. Defaults to 'x-html'

Defaults to: 'x-html'

Available since: 1.1.0

True to automatically style the html inside the content target of this component (body for panels). Defaults to false.

Defaults to: false

Available since: 1.1.0

An Ext.Template, Ext.XTemplate or an array of strings to form an Ext.XTemplate. Used in conjunction with the data and tplWriteMode configurations.

Available since: 1.1.0

The Ext.(X)Template method to use when updating the content area of the Component. Defaults to 'overwrite' (see Ext.XTemplate.overwrite).

Defaults to: 'overwrite'

Available since: 1.1.0

The width of this component in pixels.

Available since: 1.1.0

Defaults to: false

Available since: 1.1.0

Defaults to: false

Available since: 1.1.0

Read-only property indicating whether or not the component can be dragged

Defaults to: false

Available since: 1.1.0

Defaults to: /^(?:scope|delay|buffer|single|stopEvent|preventDefault|stopPropagation|normalized|args|delegate|element|vertical|horizontal)$/

Available since: 1.1.0

Defaults to: true

Available since: 1.1.0

Defaults to: true

Available since: 1.1.0

Defaults to: false

Available since: 1.1.0

Read-only property indicating whether or not the component has been rendered.

Defaults to: false

Available since: 1.1.0

Available since: 1.1.0

Adds a CSS class to the top level element representing this component.

Available since: 1.1.0

Returns

• Ext.Component

  Returns the Component to allow method chaining.

Adds the specified events to the list of events which this Observable may fire.

Available since: 1.1.0

Parameters

• o : Object|String

  Either an object with event names as properties with a value of true or the first event name string if multiple event names are being passed as separate parameters.

• Optional : string

  . Event name if multiple event names are being passed as separate parameters. Usage:

  this.addEvents('storeloaded', 'storecleared');


Appends an event handler to this object.

Available since: 1.1.0

Parameters

• eventName : String

  The name of the event to listen for. May also be an object who's property names are event names. See

• handler : Function

  The method the event invokes.

• scope : Object (optional)

  The scope (this reference) in which the handler function is executed. If omitted, defaults to the object which fired the event.

• options : Object (optional)

  An object containing handler configuration. properties. This may contain any of the following properties:

  • scope : Object
    The scope (this reference) in which the handler function is executed. If omitted, defaults to the object which fired the event.
  • delay : Number
    The number of milliseconds to delay the invocation of the handler after the event fires.
  • single : Boolean
    True to add a handler to handle just the next firing of the event, and then remove itself.
  • buffer : Number
    Causes the handler to be scheduled to run in an Ext.util.DelayedTask delayed by the specified number of milliseconds. If the event fires again within that time, the original handler is not invoked, but the new handler is scheduled in its place.
  • target : Observable
    Only call the handler if the event was fired on the target Observable, not if the event was bubbled up from a child Observable.
  • element : String
    This option is only valid for listeners bound to Components. The name of a Component property which references an element to add a listener to.

  This option is useful during Component construction to add DOM event listeners to elements of Components which will exist only after the Component is rendered. For example, to add a click listener to a Panel's body:

  new Ext.Panel({
      title: 'The title',
      listeners: {
          click: this.handlePanelClick,
          element: 'body'
      }
  });


  When added in this way, the options available are the options applicable to Ext.Element.addListener




  Combining Options
  Using the options argument, it is possible to combine different types of listeners:

  A delayed, one-time listener.

  myPanel.on('hide', this.handleClick, this, {
  single: true,
  delay: 100
  });

  Attaching multiple handlers in 1 call
  The method also allows for a single argument to be passed which is a config object containing properties which specify multiple events. For example:

  myGridPanel.on({
      cellClick: this.onCellClick,
      mouseover: this.onMouseOver,
      mouseout: this.onMouseOut,
      scope: this // Important. Ensure "this" is correct during handler execution
  });


  .

Overrides: Ext.util.Observable.addListener

Adds listeners to any Observable object (or Element) which are automatically removed when this Component is destroyed.

Available since: 1.1.0

Parameters

• item : Observable|Element

  The item to which to add a listener/listeners.

• ename : Object|String

  The event name, or an object containing event name properties.

• fn : Function

  Optional. If the ename parameter was an event name, this is the handler function.

• scope : Object

  Optional. If the ename parameter was an event name, this is the scope (this reference) in which the handler function is executed.

• opt : Object

  Optional. If the ename parameter was an event name, this is the addListener options.

Template method that can be overriden to perform logic after the panel has layed out itself e.g. Resized the body and positioned all docked items.

Available since: 1.1.0

Overrides: Ext.lib.Component.afterComponentLayout

Available since: 1.1.0

Parameters

• alignTo : Object
• allowSides : Object
• offset : Object

Sets references to elements inside the component. E.g body -> x-panel-body

Available since: 1.1.0

Available since: 1.1.0

Available since: 1.1.0

Overrides: Ext.lib.Component.beforeDestroy

Removes all listeners for this object including the managed listeners

Available since: 1.1.0

Removes all managed listeners for this object.

Available since: 1.1.0

Destroys the Component.

Available since: 1.1.0

Disable the component.

Available since: 1.1.0

Parameters

• silent : Boolean

  Passing true, will supress the 'disable' event from being fired.

Returns

• Ext.lib.Component

  this

This method needs to be called whenever you change something on this component that requires the components layout to be recalculated. An example is adding, showing or hiding a docked item to a Panel, or changing the label of a form field. After a component layout, the container layout will automatically be run. So you could be on the safe side and always call doComponentLayout instead of doLayout.

Available since: 1.1.0

Parameters

• width : Object
• height : Object
• isSetSize : Object

Returns

• Ext.Container

  this

private

Available since: 1.1.0

Parameters

• el : Object
• options : Object

Enable the component

Available since: 1.1.0

Parameters

• silent : Boolean

  Passing false will supress the 'enable' event from being fired.

Returns

• Ext.lib.Component

  this

Enables events fired by this Observable to bubble up an owner hierarchy by calling this.getBubbleTarget() if present. There is no implementation in the Observable base class.

This is commonly used by Ext.Components to bubble events to owner Containers. See Ext.Component.getBubbleTarget. The default implementation in Ext.Component returns the Component's immediate owner. But if a known target is required, this can be overridden to access the required target more quickly.

Example:

Ext.override(Ext.form.Field, {
//  Add functionality to Field's initComponent to enable the change event to bubble
initComponent : Ext.createSequence(Ext.form.Field.prototype.initComponent, function() {
    this.enableBubble('change');
}),

//  We know that we want Field's events to bubble directly to the FormPanel.
getBubbleTarget : function() {
    if (!this.formPanel) {
        this.formPanel = this.findParentByType('form');
    }
    return this.formPanel;
}
});

var myForm = new Ext.formPanel({
title: 'User Details',
items: [{
    ...
}],
listeners: {
    change: function() {
        // Title goes red if form has been modified.
        myForm.header.setStyle('color', 'red');
    }
}
});

Available since: 1.1.0

Parameters

• events : String/Array

  The event name to bubble, or an Array of event names.

Fires the specified event with the passed parameters (minus the event name).

An event may be set to bubble up an Observable parent hierarchy (See Ext.Component.getBubbleTarget) by calling enableBubble.

Available since: 1.1.0

Parameters

• eventName : String

  The name of the event to fire.

• args : Object...

  Variable number of parameters are passed to handlers.

Returns

• Boolean

  returns false if any of the handlers return false otherwise it returns true.

Provides the link for Observable's fireEvent method to bubble up the ownership hierarchy.

Available since: 1.1.0

Returns

• Ext.Container

  the Container which owns this Component.

Available since: 1.1.0

Retrieves the top level element representing this component.

Available since: 1.1.0

Available since: 1.1.0

Gets the current height of the component's underlying element.

Available since: 1.1.0

Returns

• Number

Retrieves the id of this component. Will autogenerate an id if one has not already been set.

Available since: 1.1.0

This function takes the position argument passed to onRender and returns a DOM element that you can use in the insertBefore.

Available since: 1.1.0

Parameters

• position : String/Number/Element/HTMLElement

  Index, element id or element you want to put this component before.

Returns

• HTMLElement

  DOM element that you can use in the insertBefore

Available since: 1.1.0

Gets the current size of the component's underlying element.

Available since: 1.1.0

Returns

• Object

  An object containing the element's size {width: (element width), height: (element height)}

This is used to determine where to insert the 'html', 'contentEl' and 'items' in this component.

Available since: 1.1.0

Gets the current width of the component's underlying element.

Available since: 1.1.0

Returns

• Number

Returns this Component's xtype hierarchy as a slash-delimited string. For a list of all available xtypes, see the Ext.Component header.

If using your own subclasses, be aware that a Component must register its own xtype to participate in determination of inherited xtypes.

Example usage:

var t = new Ext.form.Text();
alert(t.getXTypes());  // alerts 'component/field/textfield'

Available since: 1.1.0

Returns

• String

  The xtype hierarchy string

Checks to see if this object has any listeners for a specified event

Available since: 1.1.0

Parameters

• eventName : String

  The name of the event to check for

Returns

• Boolean

  True if the event is being listened for, else false

Hide the component

Available since: 1.1.0

Parameters

• animation : Object/String/Boolean (optional)

  Defaults to false.

Returns

• Ext.Component

  this

Creates an array of class names from the configurations to add to this Component's el on render.

Private, but (possibly) used by ComponentQuery for selection by class name if Component is not rendered.

Available since: 1.1.0

Returns

• Array

  An array of class names with which the Component's element will be rendered.

Available since: 1.1.0

Overrides: Ext.lib.Component.initComponent

Adds ctCls to container.

Available since: 1.1.0

Parameters

• container : Object

Returns

• Ext.Element

  The initialized container

Initializes this components contents. It checks for the properties html, contentEl and tpl/data.

Available since: 1.1.0

Available since: 1.1.0

Parameters

• plugin : Object

Initialized the renderData to be used when rendering the renderTpl.

Available since: 1.1.0

Returns

• Object

  Object with keys and values that are going to be applied to the renderTpl

Initializes the renderTpl.

Available since: 1.1.0

Returns

• Ext.XTemplate

  The renderTpl XTemplate instance.

Function description

Available since: 1.1.0

Returns

• String

  A CSS style string with style, padding, margin and border.

Available since: 1.1.0

Parameters

• selector : Object

Method to determine whether this Component is currently disabled.

Available since: 1.1.0

Returns

• Boolean

  the disabled state of this Component.

Method to determine whether this Component is draggable.

Available since: 1.1.0

Returns

• Boolean

  the draggable state of this component.

Method to determine whether this Component is droppable.

Available since: 1.1.0

Returns

• Boolean

  the droppable state of this component.

Method to determine whether this Component is floating.

Available since: 1.1.0

Returns

• Boolean

  the floating state of this component.

Method to determine whether this Component is currently set to hidden.

Available since: 1.1.0

Returns

• Boolean

  the hidden state of this Component.

Returns true if this component is visible.

Available since: 1.1.0

Returns

• Boolean

  True if this component is visible, false otherwise.

Tests whether or not this Component is of a specific xtype. This can test whether this Component is descended from the xtype (default) or whether it is directly of the xtype specified (shallow = true).

If using your own subclasses, be aware that a Component must register its own xtype to participate in determination of inherited xtypes.

For a list of all available xtypes, see the Ext.Component header.

Example usage:

var t = new Ext.form.Text();
var isText = t.isXType('textfield');        // true
var isBoxSubclass = t.isXType('field');       // true, descended from Ext.form.Field
var isBoxInstance = t.isXType('field', true); // false, not a direct Ext.form.Field instance

Available since: 1.1.0

Parameters

• xtype : String

  The xtype to check for this Component

• shallow : Boolean (optional)

  False to check whether this Component is descended from the xtype (this is the default), or true to check whether this Component is directly of the specified xtype.

Returns

• Boolean

  True if this component descends from the specified xtype, false otherwise.

Available since: 1.1.0

Returns the next sibling of this Component.

Optionally selects the next sibling which matches the passed ComponentQuery selector.

May also be refered to as prev()

Available since: 1.1.0

Parameters

• selector : Object

  Optional. A ComponentQuery selector to filter the following items.

Returns

• Object

  The next sibling (or the next sibling which matches the selector). Returns null if there is no matching sibling.

Appends an event handler to this object (shorthand for addListener.)

Available since: 1.1.0

Parameters

• eventName : String

  The type of event to listen for

• handler : Function

  The method the event invokes

• scope : Object (optional)

  The scope (this reference) in which the handler function is executed. If omitted, defaults to the object which fired the event.

• options : Object (optional)

  An object containing handler configuration.

Method to manage awareness of when components are added to their respective Container, firing an added event. References are established at add time rather than at render time.

Available since: 1.1.0

Parameters

• container : Ext.Container

  Container which holds the component

• pos : number

  Position at which the component was added

Available since: 1.1.0

Overrides: Ext.lib.Component.onDestroy

Available since: 1.1.0

Parameters

• e : Object

Available since: 1.1.0

Parameters

• animation : Object
• fireHideEvent : Object

Available since: 1.1.0

Called after the component is moved, this method is empty by default but can be implemented by any subclass that needs to perform custom logic after a move occurs.

Available since: 1.1.0

Parameters

• x : Number

  The new x position

• y : Number

  The new y position

Method to manage awareness of when components are removed from their respective Container, firing an removed event. References are properly cleaned up after removing a component from its owning container.

Available since: 1.1.0

Available since: 1.1.0

Overrides: Ext.lib.Component.onRender

Available since: 1.1.0

Available since: 1.1.0

Parameters

• animation : Object

Overrides: Ext.lib.Component.onShow

Returns the previous sibling of this Component.

Optionally selects the previous sibling which matches the passed ComponentQuery selector.

May also be refered to as prev()

Available since: 1.1.0

Parameters

• selector : Object

  Optional. A ComponentQuery selector to filter the preceding items.

Returns

• Object

  The previous sibling (or the previous sibling which matches the selector). Returns null if there is no matching sibling.

Available since: 1.1.0

Available since: 1.1.0

Relays selected events from the specified Observable as if the events were fired by this.

Available since: 1.1.0

Parameters

• o : Object

  The Observable whose events this object is to relay.

• events : Array

  Array of event names to relay.

Available since: 1.1.0

Removes a CSS class from the top level element representing this component.

Available since: 1.1.0

Returns

• Ext.Component

  Returns the Component to allow method chaining.

Removes an event handler.

Available since: 1.1.0

Parameters

• eventName : String

  The type of event the handler was associated with.

• handler : Function

  The handler to remove. This must be a reference to the function passed into the addListener call.

• scope : Object (optional)

  The scope originally specified for the handler.

Removes listeners that were added by the mon method.

Available since: 1.1.0

Parameters

• item : Observable|Element

  The item from which to remove a listener/listeners.

• ename : Object|String

  The event name, or an object containing event name properties.

• fn : Function

  Optional. If the ename parameter was an event name, this is the handler function.

• scope : Object

  Optional. If the ename parameter was an event name, this is the scope (this reference) in which the handler function is executed.

Available since: 1.1.0

Parameters

• container : Object
• position : Object

Returns

• Ext.lib.Component

  this

Resume firing events. (see suspendEvents) If events were suspended using the queueSuspended parameter, then all events fired during event suspension will be sent to any listeners now.

Available since: 1.1.0

Available since: 1.1.0

Parameters

• width : Object
• height : Object

Returns

• Ext.lib.Component

  this

Show this component centered of its parent or the window This only applies when the component is floating.

Available since: 1.1.0

Parameters

• centered : Boolean

  True to center, false to remove centering

Returns

• Ext.Component

  this

Available since: 1.1.0

Parameters

• layout : Object

Enable or disable the component.

Available since: 1.1.0

Parameters

• disabled : Boolean

Sets the dock position of this component in its parent panel. Note that this only has effect if this item is part of the dockedItems collection of a parent that has a DockLayout (note that any Panel has a DockLayout by default)

Available since: 1.1.0

Parameters

• dock : Object
• layoutParent : Object

Returns

• Component

  this

Sets a Component as draggable.

Available since: 1.1.0

Parameters

• draggable : Boolean/Mixed

  On first call, this can be a config object for Ext.util.Draggable. Afterwards, if set to false, the existing draggable object will be disabled

• autoShow : Boolean

Sets a Component as floating.

Available since: 1.1.0

Parameters

• floating : Boolean
• autoShow : Boolean

Sets the height of the component. This method fires the resize event.

Available since: 1.1.0

Parameters

• height : Number

  The new height to set. This may be one of:

  • A Number specifying the new height in the Element's Ext.Element.defaultUnits (by default, pixels).
  • A String used to set the CSS height style.
  • undefined to leave the height unchanged.

Returns

• Ext.Component

  this

This method allows you to show or hide a LoadMask on top of this component.

Available since: 1.1.0

Parameters

• load : Boolean/Object

  True to show the default LoadMask or a config object that will be passed to the LoadMask constructor. False to hide the current LoadMask.

• targetEl : Boolean

  True to mask the targetEl of this Component instead of the this.el. For example, setting this to true on a Panel will cause only the body to be masked. (defaults to false)

Returns

• Ext.LoadMask

  The LoadMask instance that has just been shown.

Sets the orientation for the Panel.

Available since: 1.1.0

Parameters

• orientation : String

  'landscape' or 'portrait'

• width : Number/String

  New width of the Panel.

• height : Number/String

  New height of the Panel.

Sets the left and top of the component. To set the page XY position instead, use setPagePosition. This method fires the move event.

Available since: 1.1.0

Parameters

• left : Number

  The new left

• top : Number

  The new top

Returns

• Ext.Component

  this

Sets a Component as scrollable.

Available since: 1.1.0

Parameters

• config : Mixed

  Acceptable values are a Ext.Scroller configuration, 'horizontal', 'vertical', 'both', and false

Sets the width and height of this Component. This method fires the resize event. This method can accept either width and height as separate arguments, or you can pass a size object like {width:10, height:20}.

Available since: 1.1.0

Parameters

• width : Mixed

  The new width to set. This may be one of:

  • A Number specifying the new width in the Element's Ext.Element.defaultUnits (by default, pixels).
  • A String used to set the CSS width style.
  • A size object in the format {width: widthValue, height: heightValue}.
  • undefined to leave the width unchanged.

• height : Mixed

  The new height to set (not required if a size object is passed as the first arg). This may be one of:

  • A Number specifying the new height in the Element's Ext.Element.defaultUnits (by default, pixels).
  • A String used to set the CSS height style. Animation may not be used.
  • undefined to leave the height unchanged.

Returns

• Ext.Component

  this

Convenience function to hide or show this component by boolean.

Available since: 1.1.0

Parameters

• visible : Boolean

  True to show, false to hide

Returns

• Ext.Component

  this

Sets the width of the component. This method fires the resize event.

Available since: 1.1.0

Parameters

• width : Number

  The new width to setThis may be one of:

  • A Number specifying the new width in the Element's Ext.Element.defaultUnits (by default, pixels).
  • A String used to set the CSS width style.

Returns

• Ext.Component

  this

Show the component.

Available since: 1.1.0

Parameters

• animation : Object/String/Boolean (optional)

  Defaults to false.

Returns

• Ext.Component

  this

Overrides: Ext.lib.Component.show

Show this component relative another component or element.

Available since: 1.1.0

Parameters

• alignTo : Mixed

  Element or Component

• animation : Object/String/Boolean
• allowOnSide : Boolean

  true to allow this element to be aligned on the left or right.

Returns

• Ext.Component

  this

Suspend the firing of all events. (see resumeEvents)

Available since: 1.1.0

Parameters

• queueSuspended : Boolean

  Pass as true to queue up suspended events to be fired after the resumeEvents call instead of discarding all suspended events;

Removes an event handler (shorthand for removeListener.)

Available since: 1.1.0

Parameters

• eventName : String

  The type of event the handler was associated with.

• handler : Function

  The handler to remove. This must be a reference to the function passed into the addListener call.

• scope : Object (optional)

  The scope originally specified for the handler.

Walks up the ownerCt axis looking for an ancestor Container which matches the passed simple selector.

Example:

var owningTabContainer = grid.up('tabcontainer');

Available since: 1.1.0

Parameters

• selector : String

  Optional. The simple selector to test.

Returns

• Ext.Container

  The matching ancestor Container (or undefined if no match was found).

Inherit docs

Update the content area of a component.

Available since: 1.1.0

Parameters

• htmlOrData : Mixed

  If this component has been configured with a template via the tpl config then it will use this argument as data to populate the template. If this component was not configured with a template, the components content area will be updated via Ext.Element update

• loadScripts : Boolean

  (optional) Only legitimate when using the html configuration. Defaults to false

• callback : Function

  (optional) Only legitimate when using the html configuration. Callback to execute when scripts have finished loading

Overrides: Ext.lib.Component.update

Fires after a Component had been added to a Container.

Available since: 1.1.0

Parameters

• this : Ext.Component
• container : Ext.Container

  Parent Container

• pos : Number

  position of Component

Fires after the component rendering is finished.

The afterrender event is fired after this Component has been rendered, been postprocesed by any afterRender method defined for the Component, and, if stateful, after state has been restored.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before a Component has been visually activated. Returning false from an event listener can prevent the activate from occurring.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before a Component has been visually deactivated. Returning false from an event listener can prevent the deactivate from occurring.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before the component is destroyed. Return false from an event handler to stop the destroy.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before the component is hidden when calling the hide method. Return false from an event handler to stop the hide.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before the orientation changes, if the monitorOrientation configuration is set to true. Return false to stop the orientation change.

Available since: 1.1.0

Parameters

• this : Ext.Panel
• orientation : String

  'landscape' or 'portrait'

• width : Number
• height : Number

Fires before the component is rendered. Return false from an event handler to stop the render.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires before the component is shown when calling the show method. Return false from an event handler to stop the show.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after a Component has been visually deactivated.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is destroyed.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is disabled.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is enabled.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is hidden. Fires after the component is hidden when calling the hide method.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is moved.

Available since: 1.1.0

Parameters

• this : Ext.Component
• x : Number

  The new x position

• y : Number

  The new y position

Fires when the orientation changes, if the monitorOrientation configuration is set to true.

Available since: 1.1.0

Parameters

• this : Ext.Panel
• orientation : String

  'landscape' or 'portrait'

• width : Number
• height : Number

Fires when a component is removed from an Ext.Container

Available since: 1.1.0

Parameters

• this : Ext.Component
• ownerCt : Ext.Container

  Container which holds the component

Fires after the component markup is rendered.

Available since: 1.1.0

Parameters

• this : Ext.Component

Fires after the component is resized.

Available since: 1.1.0

Parameters

• this : Ext.Component
• adjWidth : Number

  The box-adjusted width that was set

• adjHeight : Number

  The box-adjusted height that was set

• rawWidth : Number

  The width that was originally specified

• rawHeight : Number

  The height that was originally specified

Fires after the component is shown when calling the show method.

Available since: 1.1.0

Parameters

• this : Ext.Component
