Loading Grid Data wth RequestFactory

Loading data to the grid via RPC, RequestFactory or other data transport.

Reference

Demos

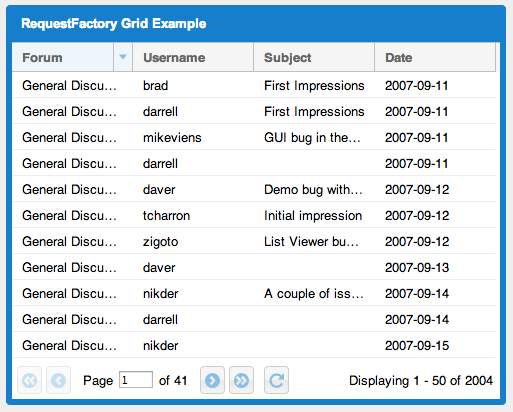

RequestFactory page loading

Initializing the DataProxy for RequestFactory communication.

  • Demo
  • com.sencha.gxt.data.shared.loader.RequestFactoryProxy Javadoc
  • The only difference from RPC vs RequestFactory loading is how the DataProxy is initialized.
  • Example of loading data with RequestFactory:

      private void createSimpleRequestFactoryPageLoadingGrid() {
        // Bean property access to RequestFactory proxy definitions
        PostProxyProperties properties = GWT.create(PostProxyProperties.class);

        // RequestFactory Service
        final ExampleRequestFactory requestFactory = GWT.create(ExampleRequestFactory.class);
        requestFactory.initialize(new SimpleEventBus());

        // RequestFactory DataProxy
        DataProxy<PagingLoadConfig, PagingLoadResult<PostProxy>> dataProxy =
            new RequestFactoryProxy<PagingLoadConfig, PagingLoadResult<PostProxy>>() {
          @Override
          public void load(PagingLoadConfig loadConfig, Receiver<? super PagingLoadResult<PostProxy>> receiver) {
            // RequestFactory data request
            PostRequest request = requestFactory.post();
            List<SortInfo> sortInfo = createRequestSortInfo(request, loadConfig.getSortInfo());
            request.getPosts(loadConfig.getOffset(), loadConfig.getLimit(), sortInfo, null).to(receiver);
            request.fire();
          }
        };

        // List Store
        ListStore<PostProxy> listStore = new ListStore<PostProxy>(properties.id());

        // Paging Loader
        final PagingLoader<PagingLoadConfig, PagingLoadResult<PostProxy>> pagingLoader =
            new PagingLoader<PagingLoadConfig, PagingLoadResult<PostProxy>>(dataProxy);
        pagingLoader.setRemoteSort(true);
        pagingLoader.addLoadHandler(new LoadResultListStoreBinding<PagingLoadConfig, PostProxy,
            PagingLoadResult<PostProxy>>(listStore));

        // Paging Tool Bar
        PagingToolBar toolBar = new PagingToolBar(50);
        toolBar.bind(pagingLoader);

        // Columns
        ColumnConfig<PostProxy, String> forumColumn = new ColumnConfig<PostProxy,
            String>(properties.forum(), 150, "Forum");
        ColumnConfig<PostProxy, String> subjectColumn = new ColumnConfig<PostProxy,
            String>(properties.subject(), 150, "Subject");
        List<ColumnConfig<PostProxy, ?>> columns = new ArrayList<ColumnConfig<PostProxy, ?>>();
        columns.add(forumColumn);
        columns.add(subjectColumn);
        ColumnModel<PostProxy> columnModel = new ColumnModel<PostProxy>(columns);

        // Grid
        Grid<PostProxy> grid = new Grid<PostProxy>(listStore, columnModel) {
          @Override
          protected void onAfterFirstAttach() {
            super.onAfterFirstAttach();
            Scheduler.get().scheduleDeferred(new ScheduledCommand() {
              @Override
              public void execute() {
                // Only start the load after this grid attaches to DOM.
                pagingLoader.load();
              }
            });
          }
        };
        grid.getView().setForceFit(true);
        grid.setLoadMask(true);
        grid.setLoader(pagingLoader);
        grid.setColumnReordering(true);

        // Grid Containers
        FramedPanel panel = new FramedPanel();
        panel.setCollapsible(true);
        panel.setHeadingText("Loading Data with RequestFactory");
        panel.setPixelSize(400, 200);
        panel.addStyleName("margin-10");

        VerticalLayoutContainer container = new VerticalLayoutContainer();
        container.setBorders(true);
        container.add(grid, new VerticalLayoutData(1, 1));
        container.add(toolBar, new VerticalLayoutData(1, -1));
        panel.add(container);

        widget.add(panel);
      }


RequestFactory page loading with remote filtering

Swap out the PagingLoadConfig with FilterPagingLoadConfig and add the bean filtering configuration.

  • Demo
  • com.sencha.gxt.data.shared.loader.RequestFactoryProxy Javadoc<
  • The RequestFactoryProxy has some helper methods to pass along the SortInfo and FilterConfig to the server.
  • Example using the above snippet, notice the FilterPagingLoadConfig:

      // RequestFactory DataProxy
      DataProxy<FilterPagingLoadConfig, PagingLoadResult<PostProxy>> dataProxy =
          new RequestFactoryProxy<FilterPagingLoadConfig, PagingLoadResult<PostProxy>>() {
        @Override
        public void load(FilterPagingLoadConfig loadConfig, Receiver<? super PagingLoadResult<PostProxy>> receiver) {
          PostRequest request = requestFactory.post();

          // createRequestSrequestInfo(...) is a helper method to translate SortInfo for RequestFactory
          List<SortInfo> sortInfo = createRequestSortInfo(request, loadConfig.getSortInfo());

          // createRequestFilter(...) is a helper method to translate FilterConfig for RequestFactory
          List<FilterConfig> filterConfig = createRequestFilterConfig(request, loadConfig.getFilters());

          // requestFactory request
          request.getPosts(loadConfig.getOffset(), loadConfig.getLimit(), sortInfo, filterConfig).to(receiver);
          request.fire();
        }
      };

      // List Store
      ListStore<PostProxy> listStore = new ListStore<PostProxy>(properties.id());

      // Paging Loader
      final PagingLoader<FilterPagingLoadConfig, PagingLoadResult<PostProxy>> pagingLoader =
          new PagingLoader<FilterPagingLoadConfig, PagingLoadResult<PostProxy>>(dataProxy) {
        @Override
        protected FilterPagingLoadConfig newLoadConfig() {
          // Bean filtering configuration for sending the filtering config to server
          return new FilterPagingLoadConfigBean();
        }
      };
      pagingLoader.setRemoteSort(true);
      pagingLoader.addLoadHandler(new LoadResultListStoreBinding<FilterPagingLoadConfig, PostProxy,
          PagingLoadResult<PostProxy>>(listStore));

  • Configure the Grid filter UI options. More about setting up Grid Filtering.

      // Grid Ui Filters
      StringFilter<PostProxy> forumFilter = new StringFilter<PostProxy>(properties.forum());
      StringFilter<PostProxy> subjectFilter = new StringFilter<PostProxy>(properties.subject());

      GridFilters<PostProxy> filters = new GridFilters<PostProxy>();
      filters.initPlugin(grid);
      filters.setLocal(false);
      filters.addFilter(forumFilter);
      filters.addFilter(subjectFilter);

  • On the server side the loadConfig list carries the filters sent with the request:

      public PostPagingLoadResultBean getPosts(int offset, int limit, List<SortInfoBean> sortInfo,
          List<FilterConfigBean> filterConfig) {
          if (filterConfig != null && filterConfig.size() != 0) {
                  for (FilterConfigBean filter : filterConfig) {
                      String type = filter.getType();
                      String test = filter.getValue();
                      String path = filter.getField();
                      String comparison = filter.getComparison();
                      // Do some server filter magic.
                  }
          }
          //...
      }


RequestFactory page loading with remote sorting

Sending the SortInfo to the server.

  • The PagingLoadConfig contains the SortInfo and can be sent back to the server.
  • Set the remote sort to true for sending the SortInfo in the PagingLoadConfig:

      pagingLoader.setRemoteSort(true);
