Ext JS 6.2 Upgrade Guide

Introduction

With Ext JS 6.2 every effort has been made to ensure a high degree of compatibility with existing code, but there have been some compromises and minor differences introduced. This article will cover the important changes you should be aware of before planning your upgrade.

Core

The move to browser-based, native scrolling and pinch-to-zoom support has perhaps the largest impact on existing code.

Native Scroll and Zoom

On touch-screen-enabled devices, browsers automatically handle certain gestures and perform default "touch actions" in response. These touch actions are:

  • Horizontal Scroll
  • Vertical Scroll
  • Pinch to Zoom
  • Double Tap to Zoom

In previous versions of the framework these browser touch actions were disabled by default, and all scrolling on touch-screen devices was handled by a virtualized scroller. For improved accessibility Ext JS 6.2 now supports all the browser touch actions, including pinch-to-zoom, and has replaced the virtual scroller with native scrolling. Upgraded applications will need to enable pinch-to-zoom, and may need to modify their gesture handling logic to account for the presence of browser touch actions.

In previous versions, the virtual scrollers could be disabled so they would not listen to gesture events and perform scrolling. Now that scrollers are native, the "disabled" config has been removed, in favor of setting the appropriate x/y scrolling configs.

Enabling Pinch and Double Tap Zoom

Previous versions required the following meta tag to be added to the head of the html document in order to function properly. This tag disables user scaling of the viewport via pinch or double-tap:

<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, user-scalable=no">

While applications using this meta tag should still function properly, they will not be able to take advantage of the new support for pinch and double-tap zoom. As such we recommend replacing the old viewport meta tag with the following:

<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=10, user-scalable=yes">

Handling Gestures

Since the browser default touch actions were previously disabled, application code could handle various gestures without concern for interference from the browser. With browser touch actions enabled one may find that undesired scrolling or zooming occurs while handling a gesture. Application views that implement custom gesture handling should use the the touchAction config or the [ext:Ext.dom.Element#setTouchAction setTouchAction]] method to configure the browser touch actions that are allowed on a particular Component or Element. For example, a Component that handles the drag gesture can disable scrolling while its element is being dragged as follows:

Ext.create('Ext.Component', {
    touchAction: {
        panX: false,
        panY: false
    },
    listeners: {
        drag: function(e) {
            // handle drag
        }
    }
});

For a more in-depth discussion of gesture handling see the Gesture Guide.

Gesture Propagation

In order to allow gesture handlers to be properly nested, the order in which gesture events propagate through the DOM hierarchy was changed. In previous versions of the framework a gesture event, such as drag, propagated after the native event which caused it had already completed propagation. Additionally, if multiple gestures such as drag and swipe were recognized simultaneously, they would also propagate separately. This meant that there was no opportunity for one gesture handler to prevent another from firing when gestures of different types were nested in the same DOM hierarchy.

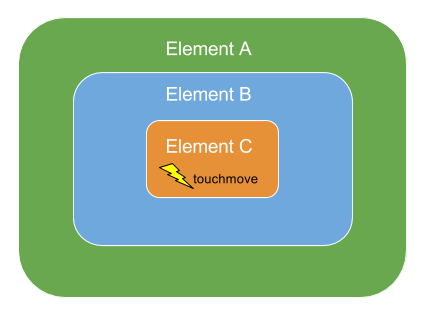

For example, assume the DOM contains three elements, Element "A" contains Element "B", which contains Element "C". Element "C" receives a touchmove event which meets the criteria for both a drag and a swipe gesture:

Element Hierarchy

In previous versions the touchmove, dragstart, and swipestart events would proceed to propagate through the DOM as follows:

Old Gesture Propagation

In Ext JS 6.2 this has been improved so that all three events propagate through the DOM in tandem.

New Gesture Propagation

The main benefit of the new approach to propagation is that gesture handlers can now "claim" that the current gesture is the gesture they are handling. This prevents events associated with any other gesture from firing for the remaining duration of the gesture.

Applications that are sensitive to the firing order of gesture handlers may experience issues when upgrading to Ext JS 6.2. In some cases these issues can be solved using an appropriately placed call to stopPropagation or claimGesture. In other cases the handlers may need to be rewritten or refactored to take the new propagation order into account.

For more information on gesture propagation and claiming see the Gesture Guide.

Event Translation

The click event is no longer automatically translated to tap gestures on IE and Edge devices. This change resolve limitations from popup blockers and the like that rely on processing the actual click event but does inject a 300ms delay. To avoid this delay, use the tap event instead. The tap event fires immediately and works on all devices.

Actions

The Ext.Action class has been enhanced to work declaratively with ViewControllers. The new actions config can be used to manage a group of named, reusable actions that now work seamlessly with the associated controller.

Object Destruction

The Ext.Base destroy method will loop over the object's own properties and set all object, array or function references to null. This process greatly reduces the possibility of memory leaks. By default this property clearing is asynchronous to avoid timing problems as object graphs are being destroyed. The new Ext.Base#property-clearPropertiesOnDestroy option can configure (or disable) this behavior.

Pivot Grid

Matrix

Several configs previously declared directly on the pivot grid have been consolidated in a single [[Ext.pivot.Grid#cfg-matrix matrix]] config. This new matrix config allows changing the matrix type using setMatrix.

The following code, while still supported, should be migrated to the new form:

{
    xtype: 'pivotgrid',
    matrixConfig: {
        type: 'local',
        store: 'yourStoreId'    // or a store instance
    },
    rowGrandTotalsPosition: 'first',
    leftAxis: [{
        dataIndex: 'country',
        direction: 'DESC',
        header: 'Countries',
        width: 150
    }],
    topAxis: [{
        dataIndex: 'year',
        direction: 'ASC'
    }],
    aggregate: [{
        dataIndex: 'value',
        header: 'Total',
        aggregator: 'sum',
        width: 120
    }]
}

Using the matrix config, the above code should now be as follows:

 {
    xtype: 'pivotgrid',
    matrix: {
        type: 'local',
        store: 'yourStoreId',    // or a store instance
        rowGrandTotalsPosition: 'first',
        leftAxis: [{
            dataIndex: 'country',
            direction: 'DESC',
            header: 'Countries'
            width: 150
        }],
        topAxis: [{
            dataIndex: 'year',
            direction: 'ASC'
        }],
        aggregate: [{
            dataIndex: 'value',
            header: 'Total',
            aggregator: 'sum',
            width: 120
        }]
    }
}

Exporter

The grid and pivot grid exporter plugins work in both Classic and Modern Toolkits. These plugins adds the following methods to the associated grid or pivot grid:

Excel

The default export format has been changed to XLSX. Specifically, the previous default exporter class "Ext.exporter.Excel" was renamed to Ext.exporter.excel.Xml and its alias is now exporter.excel03.The new default export class is Ext.exporter.excel.Xlsx and it now has the alias exporter.excel.

Draw

Modifiers

Ext.draw.modifier.Modifier is now marked private due to some internal refactoring. This class was never intended to be public but the documentation was missing the private attribute.

Classic Toolkit Specifics

Grids

Columns

The column align config now means that 'right' aligns to the right and 'left' means align to the left in all locales. align: 'right' on numeric columns will also work in all locales.

The values 'start' and 'end' may now be specified as a locale-independent way of aligning to the text start side or the text end side.

Headers

If the grid is configured with no columns which have header text or child columns, then the hideHeaders configuration is set, and the headers container is not shown. If any column acquires text subsequently, the headers container will be shown.

Cell Editing

The cell editing plugin now fires the beforeedit and edit events before moving to the next cell while tabbing. With Form Fields components in a CellEditor, if you were using beforeedit to prevent the completion of the edit for a previous cell, you should use the validateedit event instead.

There is a new event, cellactivate which fires when a cell has focusable content activated by Actionable Mode. This includes cell editing starting, but also any focusable content inside a cell being activated by entering Actionable Mode, or navigating using TAB in Actionable Mode.

Trees

Glyphs

The glyph property of a tree node will be used, or the glyph property of cell metadata if set by a custom renderer to create a node icon.

Checkboxes

The checkPropagation config of Tree now propagates checkbox changes. It may be set to any of these values:

  • 'up': Checking a child node causes parent to become checked.

  • 'down': Checking a parent node causes all children to become checked.

  • 'both': Both the above scenarios take place.

Modern Toolkit Specifics

Theme API changes

In the process of creating the new Material and iOS themes some theme variables were deprecated. When building an application, Fashion will output a warning such as the following if a deprecated variable is being assigned:

[WRN] Using new variable $new-var for deprecated variable $old-var: /path/to/app/sass/var/controller/Main.scss

The deprecated variables should still work correctly, but we recommend using the new variables instead.

Floated, Floating and Positioned

There were some internal uses of the term "floating" in Ext JS 6.0 Modern Toolkit, but unlike the new floated config, this term was applied to components that were absolutely positioned inside their container. For example:

{
    xtype: 'button',
    ui: 'circular',
    text: '+',
    right: 16,
    bottom: 16
}

There is clearly no direct use of the term "floating" in the above code. The term "floating", however, did appear in documentation and in CSS class names applied to these absolutely positioned items. This term has been replaced by the (more appropriate) term "positioned" to indicate that only the items positioning behavior is affected.

This should have minimal impact on existing code because the uses of "floating" in code was marked as private.

To avoid conflict with the old name, the name "floated" was chosen for the new config that allows the item to not only be positioned absolutely, but positioned in viewport space. That is, not constrained to its container's bounding box.

Ext.Map

This component has been moved to the "google" package and its official name is Ext.ux.google.Map. The name Ext.Map is maintained as an alternate class name.
