Ext JS 6.0.0 - Classic Toolkit


top
Guide applies to: classic

Introduction to Accessibility

Ext JS 5.0.1+ makes it possible to create highly accessible JavaScript applications by providing the tools that developers need to achieve Section 508 and ARIA compliance. Ext JS makes it easy for application developers to create UIs that are usable by people using assistive technologies to navigate the web.

Overview of Accessibility

What does software accessibility mean? In general, accessibility means that the functionality and content of an application is available and navigable to:

  • Those with disabilities, especially the visually impaired
  • Those who rely on assistive technologies, such as screen readers, to use a computer
  • Those who cannot use a mouse to navigate an application
  • Power users that prefer keystrokes over mouse clicks

In 1998, the United States Congress passed the "Section 508 Amendment to the Rehabilitation Act of 1973", more commonly known as "Section 508". Section 508 requires Federal agencies to make all electronic information readily available to people with disabilities. Section 508 accessibility is a requirement for anyone producing applications for U.S. government agencies.

However, accessibility is beneficial to all applications since the additional features enable them to reach a larger number of users. Web applications can make significant steps toward achieving compliance with Section 508 by following the guidelines spelled out in the Web Accessibility Initiative's "Accessible Rich Internet Applications Suite", otherwise known as WAI-ARIA or just "ARIA".

Accessibility in Ext JS

Thanks to Ext JS's built-in tab indexing and focus-ability, your browser should tab and focus as you would expect. With this approach, we are able to translate components into items that the browser understands for default keyboard navigable behavior.

Accessibility support in Ext JS is designed with two major goals in mind: keyboard navigation via focus and DOM attributes.

As of Ext JS 5.0.1, the focus and keyboard navigation functionality is "always on" due to the class-level property known as focusable. This allows all keyboard enabled components to interact with the user when tabbed into.

What this all really means is that focus is part of every application without any additional modifications needed by the developer.

Note: Based on the advise of accessibility experts, Ext JS's ARIA support is optimized for the Firefox browser. This recommendation was based on the adoption of Firefox by users of assistive technologies ("AT") as well as Firefox's market-leading support for accessibility features. Other browsers (and AT solutions not available on Firefox), while supported, will lag to some degree based on their level of standards compliance.

Focus styling

Focus styling is a method of visually indicating that an element is prepared to accept keyboard events or other user inputs. This is valuable (and necessary) for accessibility and power users that heavily rely upon keyboard navigation.

The framework provides a clear indication of the currently focused component, which updates as the focused component is changed. This indication will generally be seen as an inner border and/or body border on the focused element. This may vary slightly depending on your application's theme. To give you control over these visual aspects, you may modify
multiple SASS variables and mixin parameters related to focus.

Buttons

In previous releases, button focus styling was identical to hover styling. It tended to be a source of confusion for some users. In 5.0.1+, we changed buttons to use "inner" bordering to indicate focus. This takes the form of a 1px solid border directly inside the button's outer border in Neptune and Crisp themes.

In Classic themes, the focus border is rendered as a dotted outline around the Button's inner element, similar to the classic "Windows" look.

You may need to control the styling of a focused button when it is hovered or pressed separately from the default hover state. To accommodate this, we've added SASS variables for 2 additional button states - "focus-over" and "focus-pressed".

Tabs

Tabs have not historically had a visual indication of focus. In Ext JS 5.0.1+, Tabs are treated similarly to Buttons. Focus comes in the form of a solid inner border in Neptune/Crisp themes and a dotted body outline in Classic.

Crisp:

Classic:

Just as with Buttons, Tabs have SASS variables for controlling two additional focus states - "focus-over" and "focus-active".

Grids

The focused grid cell also contains a distinct focus border as seen below:

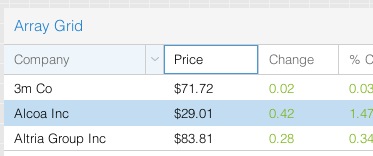

Additionally, grid column headers can also be independently focused as seen below:

Customizing Focus Styling

We expect support for keyboard navigation to be a welcome change for many applications, making them more accessible to more users. At the same time, we understand that all applications have different needs and requirements. In some cases, the default focus styling may not be desired, so we have provided the ability to customize the focus styling of any component using a robust API of SASS variables and mixins.

All of the variables having to do with focus styling will have the word "focus" in their name, so they should be easy to locate in the documentation. Simply navigate to the class documentation for the component you wish to style and scroll down to the "CSS Variables" section.

For example, to style the color of the focus border for the "default" button UI, one would use the $button-default-inner-border-color-focus SASS variable. For more information on how to use SASS in your application please refer to the Theming Guide

Keyboard Navigation

Your application's focusable components are fully navigable using the keyboard without mouse interaction. In terms of Ext JS, this means that pressing tab key will advance focus beginning with the URL bar to the next focusable item within your application document's body.

However, certain containers such as toolbars have slightly different behavior. The tab key will advance focus between toolbars and arrow keys will move focus within the toolbar. This is how WAI-ARIA standards helps to ensure better usability by avoiding the need to press tab key excessively.

For this example, let's look at two toolbars containing multiple buttons, which are an example of focusable items.

Tabbing into "Toolbar 1" will focus "Button 1" as seen above. Continued tabbing will advance focus to the next component containing a focusable item. In this case, the next focusable item, "Button A", lives within "Toolbar 2". Focusable items may be buttons, tabs, form fields, grids, etc.

Alternatively, "shift + tab" will follow the tabindex in reverse order, abiding by the same rules as above. As an example, performing a "shift + tab" within "Toolbar 2" will return focus to "Toolbar 1".

Upon entering one of the above toolbars, you may also use your arrow keys to navigate between buttons. Your arrow keys will loop through all of the buttons within the toolbar. Upon reaching "Button 4", focus will loop back to "Button 1".

If you use your tab key to leave a toolbar, and then "shift + tab" back to said toolbar, the framework will restore focus to the previously focused button. This creates a form of state within your toolbar and other focusable containers.

Note: Upon entering an input field, arrow key navigation will only operate within said field. tab or shift-tab key press will then be necessary to exit the field.

DOM attributes

A Component's DOM elements should use attributes that provide semantic information regarding the elements' type, state, and description. These attributes are used by assistive technologies, such as screen readers, to provide verbal cues to the user and can be categorized into two separate groups:

ARIA Roles

ARIA roles are the main indicator of a Component or Element's type. Roles are constant and do not change as the user interacts with a Component. The most commonly used ARIA Roles in Ext JS are Widget Roles. Many of these Widget Roles directly correspond to Ext JS components. Some examples of widget roles are:

  • Toolbars
  • Tab bars and tabs
  • Checkboxes
  • Radio Buttons
  • Buttons
  • Breadcrumb Groups

ARIA States and Properties

DOM attributes are attributes that may change in response to user interaction or application state. An example of an ARIA State is the "aria-checked" attribute that is applied to a checkbox component when it is checked by the user. Likewise, an example of an ARIA Property is the "aria-invalid" property of a form field, which may be dynamically changed based on validation or user input.

We'll talk about enabling ARIA States and Properties in the ARIA package section below.

ARIA Package

As of Ext JS 6+, ARIA functionality integrates directly into the component life-cycle. This means you won’t need a special “aria” package to get correct ARIA behavior. Applications will now support screen readers (like JAWS) without the need for special inclusion.

However, in Ext JS 5, the "ext-aria" package is a separate Cmd package that provides support for ARIA States and Properties. The 'ext-aria' package should be included in the Sencha Cmd generated app.json file's requires block like any other package.

For instance:

"requires": [
    "ext-aria"
],

Once you've modified your application's app.json file, simply rebuild the application. After building, your components will contain the ARIA states and properties described above.

That said, it is not necessary to directly require the ARIA package if your are utilizing "ext-theme-aria" in Ext JS 5 or "theme-aria" in Ext JS 6. The ARIA theme requires the ARIA package by default. We'll discuss implementing ARIA theme in the next section.

Note: If you're not familiar with building an application as described above, please visit our Getting Started guide for more information.

ARIA Theme

The ARIA theme is a high-contrast theme that makes applications easier for visually impaired users to view. It can be used out of the box or extended to create a customized look and feel.

To incorporate the Ext JS ARIA theme into your application, simply modify the theme block in app.json.

The default theme setting should become one of the following:

Ext JS 5

/**
 * The name of the theme for this application.
 */
"theme": "ext-theme-aria",

Ext JS 6

/**
 * The name of the theme for this application.
 */
"theme": "theme-aria",

Once you've modified your application's app.json file, simply refresh the application. The application should be utilizing the ARIA theme theme as seen below:

For information about custom theming, please check out the Ext JS Theming Guide.

Note: If you're not familiar with building an application as described above, please visit our Getting Started guide for more information.

Conclusion

Ext JS 5.0.1+ contains core functionality to support accessibility with our new focus and keyboard navigation additions. The ARIA package (included by default in Ext JS 6) and ARIA theme provides you with a much simpler path to creating an accessible application. We are working towards expanding functionality to provide more robust accessibility support in future releases.
